Curtiss-Wright CW-19

Civil utility aircraft mainly used by China and Cuba

Overview

Curtiss United States ICAO: CW19 1935–1936

The Curtiss-Wright CW-19 was developed during the mid-1930s as a civil utility aircraft in the United States. The aircraft was designed by Don Berlin, Carl Scott, and Feroe Page, and was produced in small quantities in several versions. A total of thirty aircraft were built, approximately. It first flew in 1935 and was mainly used by the Chinese Air Force and the Cuban Air Force.

Live Fleet Activity (CW19)

📡

Fetching live data…

Specifications

Units
Engine
1 × Wright R-760E2 Whirlwind
Engine type
Piston
Power
350 hp · 261 kW
Avionics
—
Wing tips
No winglets
Seats
2
Crew
—
Cabin width
—
Cabin height
—
Cabin length
—
Exterior length
26 ft 4 in  ·  8.03 m
Tail height
—
Fuselage diameter
3 ft 3 in  ·  1.00 m
Wing span
35 ft 0 in  ·  10.67 m
Baggage volume
—
Gross weight
—
Empty weight
—
Max takeoff weight
3,500 lb  ·  1,600 kg
Max landing weight
—
Max payload
650 lb  ·  300 kg
Fuel capacity
Max cruise speed
161 kt  ·  185 mph  ·  298 km/h
Maximum speed
—
Cruise speed
—
Approach speed
—
Range
500 nm  ·  580 mi  ·  930 km
Fuel burn
—
Ceiling
15,500 ft  ·  4,700 m
Rate of climb
1,890 ft/min  ·  10 m/s
Takeoff distance
—
Landing distance
—
(/) tap to zoom
(/)

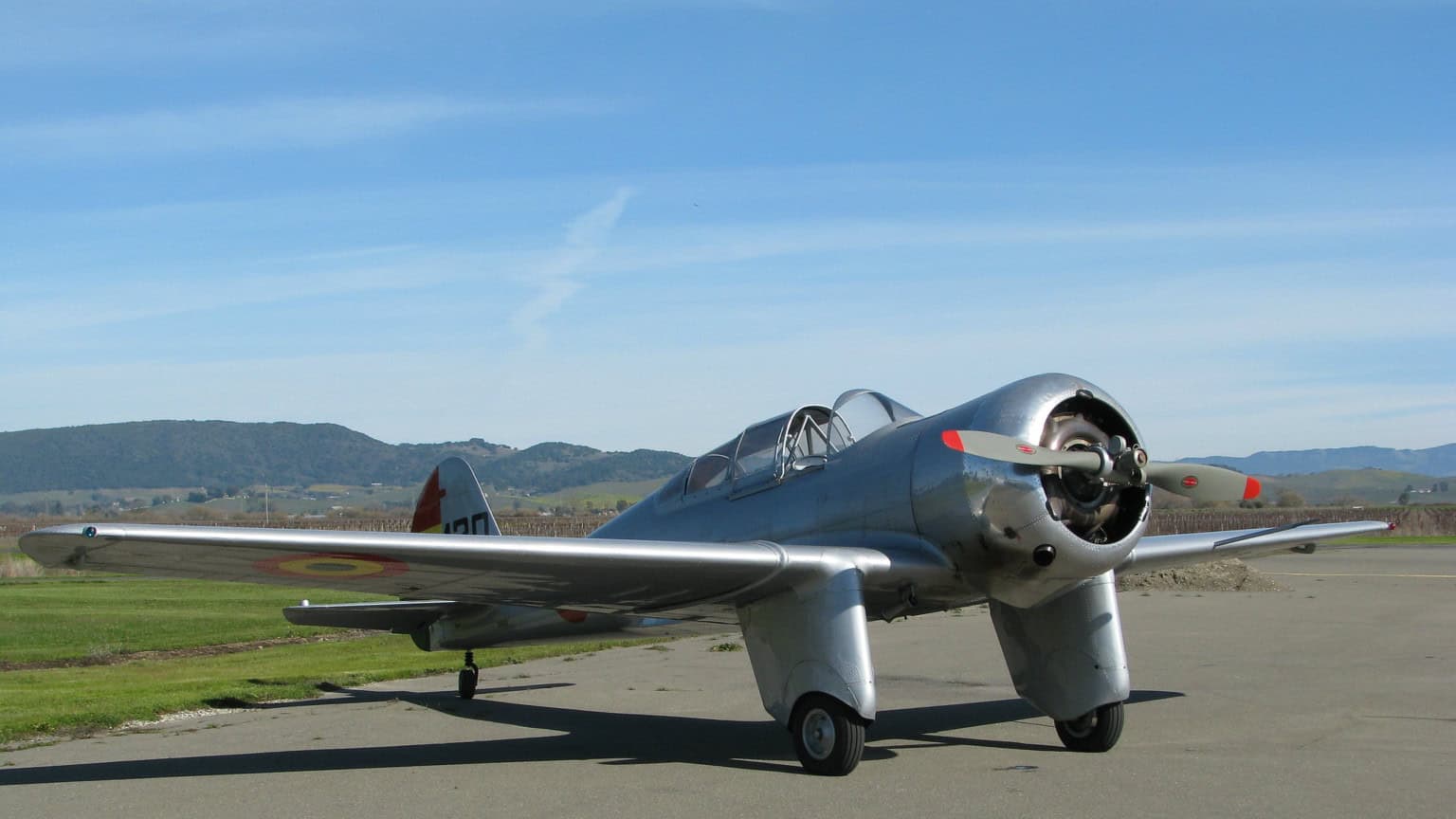

Curtiss Wright 19R (N19RX)

Live fleet activity details

📡
Fetching live data…
All Active Aircraft Types
Flight Airline Reg Alt Speed Heading V/S

Operational Context

The Curtiss-Wright CW-19 was initially built as the Curtiss-Robinson CR-2 Coupe, an all-metal low-wing cantilever monoplane in the United States. The CR-2 prototype featured a strut-braced wing and landing gears without fairings. Two of these prototypes were built. The aircraft was originally targetted to market the civilian market before military variants were built. In 1935, the aircraft took to the air for the first time. The Chinese Air Force ordered twenty aircraft while the Cuban Air Force ordered three. An unarmed trainer variant was also built and presented to the United States Army Air Corps, however, no orders were received.

The CW-19R has tandem seating for two crew members. It has an external length of 8.03 meters, an external height of 2.18 meters, and a fuselage diameter of 1 meter. It has a fixed tailwheel landing gear with a wheelbase of 5.8 meters. The wingspan is 10.67 meters and the wing area is 16.2 square meters. It has an empty weight of 635 kg, a gross weight of 1,588 kg, and a maximum payload of 292 kg.

The aircraft is powered by a single Wright R-760E2 Whirlwind engine. It is a seven-cylinder supercharged air-cooled radial piston engine with two pushrod-actuated valves per cylinder, a gear-driven supercharger, and a direct drive reduction gear. It produces a maximum thrust of 350 hp and drives a two-bladed fixed-pitch metal propeller. The maximum speed is 161 knots and the cruise speed is 143 knots. It can fly up to 15,500 feet and can climb at a rate of 1,890 feet per minute. The travel range is 500 nautical miles.

The CW-19 could be armed with a one to three fixed forward-firing 7.62 mm machine gun and a single trainable rearward-firing 7.62 mm machine gun. It could also be loaded with several bombs.
