North American FJ-1 Fury

First jet aircraft that served the United States Navy, introduced in October 1947

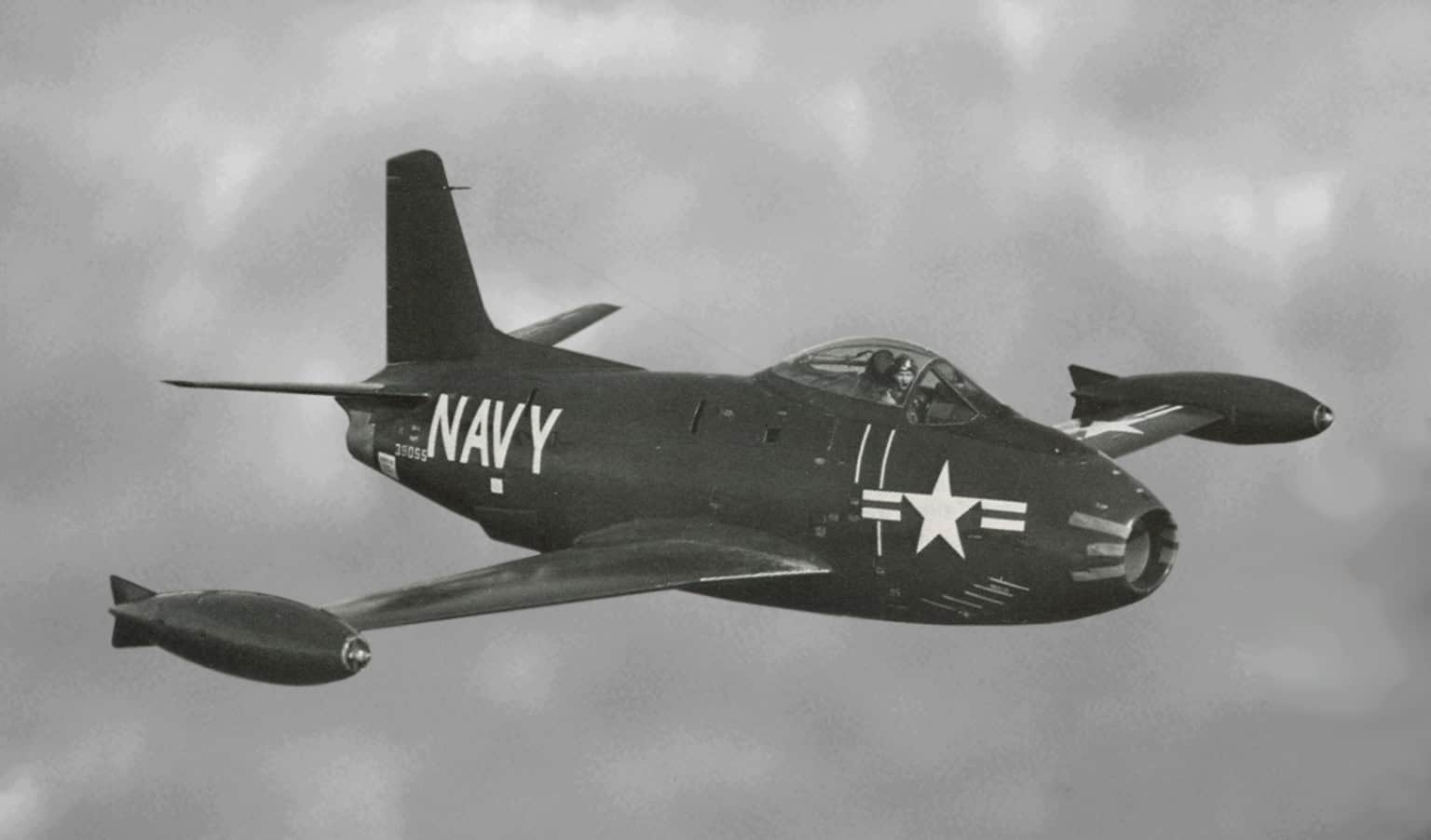

US Navy FJ 1
Scroll down for image gallery
credit: Insomnia Cured Here
Share on Pinterest Share on WhatsApp

The North American FJ-1 Fury was developed and manufactured by North American Aviation and was the first operational jet aircraft that served the United States Navy. Introduced in October 1947, the FJ-1 was developed from the P-51D Mustang long-range fighter bomber. It performed its maiden flight in September 1946 and a total number of 33 aircraft were built including prototypes.

Manufacturer:
North American Aviation NAA
Country:
United States
Manufactured:
1946 to: 1948
ICAO:
FJ1
Price:
Avionics:
Engine:
1x Allison J35-A-2
Jet
Power:
4,000 pound-force
Max Cruise Speed:
475 knots
880 Km/h
Approach Speed (Vref):
Travel range:
1,301 Nautical Miles
2,409 Kilometers
Fuel Economy:
Service Ceiling:
32,000 feet
Rate of Climb:
3300 feet / minute
16.76metre / second
Take Off Distance:
Landing Distance:
Max Take Off Weight:
6,854 Kg
15,110 lbs
Max Landing Weight:
Max Payload:
500 Kg
1,102 lbs
Fuel Tank Capacity:
805 gallon
3,047 litre
Baggage Volume:
Seats - Economy / General:
1 seats
Seats - Business Class:
Seats - First Class:
Cabin Height:
Cabin Width:
Cabin Length:
Exterior Length:
10.48 metre - 34.38 feet
Tail height:
4.52 metre - 14.83 feet
Fuselage Diameter:
1.2 metre - 3.94 feet
Wing Span / Rotor Diameter:
11.63 metre - 38.16 feet
Wing Tips:
No Winglets

During late 1944, the Fury started as a straight-wing fighter aircraft with tricycle landing gear and a single turbojet engine that passes through the fuselage. It was derived from the P-51D Mustang and greatly resembled the wing, as well as the tail assembly and the canopy.

The prototype was designated XFJ-1 and was in competition during the time with the Douglas F3D Skynight and Vought F6U Pirate. On September 11, 1946, the XFJ-1 prototype took to the air for the first time. Three prototypes were built in total. In October 1947, deliveries of production aircraft started. A total of thirty-three FJ-1 Furys were built including three prototypes.

The single-crew FJ-1 Fury has an external length of 10.48 meters, an external height of 3 meters, and a fuselage diameter of 1.2 meters. The tail height is 4.52 meters and the wheelbase is 4.44 meters. It has a wingspan of 11.63 meters and a wing area of 20.5 square meters. The aircraft has an empty weight of 4,010 kg, a loaded weight of 6,854 kg, and a maximum payload of 500 kg. It has fuel provisions of 465 gal internal and two 170 gal in wingtip fuel tanks.

The FJ-1 is powered by a single Allison J35-A-2 engine. It is an afterburning turbojet with an eleven-stage axial compressor, eight tubular inter-connected combustion chambers, a single-stage axial turbine, and a dry-sump pressure system with spur gear pressure and scavenge pumps. The engine produces a maximum power of 4,000 lbf.

The aircraft has a maximum speed of 475 knots at 9,000 feet. The stalling speed is 106 knots. It has a travel range of 1,301 nautical miles with external tanks. It can fly up to 32,000 feet and can climb at a rate of 3,300 feet per minute at sea level. The armament included six 12.7 mm M2 Browning heavy machine guns with 1,500 rounds in total.
