The Yakovlev Yak-18 is a tandem military primary trainer aircraft built by the Yakovlev design bureau in the Soviet Union. It was initially fitted with a single Shvetsov M-11FR-1 radial piston engine rated at 160 horsepower. The aircraft entered in service in 1946 and was produced as the Nanchang CJ-5 in China.

Manufacturer:
Yakovlev
Country:
Russia
Manufactured:
1946 to: 1956
ICAO:
YK18
Price:
Avionics:
Engine:
1x Ivchenko AI-14RF
Piston
Power:
300 horsepower
Max Cruise Speed:
160 knots
296 Km/h
Approach Speed (Vref):
Travel range:
380 Nautical Miles
704 Kilometers
Fuel Economy:
Service Ceiling:
19,700 feet
Rate of Climb:
1000 feet / minute
5.08metre / second
Take Off Distance:
350 metre - 1,148.28 feet
Landing Distance:
400 metre - 1,312.32 feet
Max Take Off Weight:
1,320 Kg
2,910 lbs
Max Landing Weight:
1,320 Kg
2,910 lbs
Max Payload:
180 Kg
397 lbs
Fuel Tank Capacity:
75 gallon
284 litre
Baggage Volume:
Seats - Economy / General:
2 seats
Seats - Business Class:
Seats - First Class:
Cabin Height:
Cabin Width:
Cabin Length:
Exterior Length:
8.3 metre - 27.23 feet
Tail height:
3.35 metre - 10.99 feet
Fuselage Diameter:
0.9 metre - 2.95 feet
Wing Span / Rotor Diameter:
10.6 metre - 34.78 feet
Wing Tips:
No Winglets

The initial production version of the aircraft designated as Yak-18 was fitted with retractable main landing gear and fixed tailwheel. It is powered by a Shvetsov M-11 five-cylinder radial engine rated at 160 horsepower thrust. The Yak-18 featured a pneumatic system and served as a trainer aircraft and took its first flight in 1946. It was produced until 1956.

The Yak-18 became popular as a night bomber in service with the North Korean Air Force throughout the Korean War. In 1951, it also gained popularity for its international speed record. Afterward, the need for tailwheel type landing gear trainer aircraft lessened that led to the manufacturing company to re-design the aircraft with newly fitted retractable tricycle undercarriage and a more powerful engine. The new version was designated as Yak-18A.

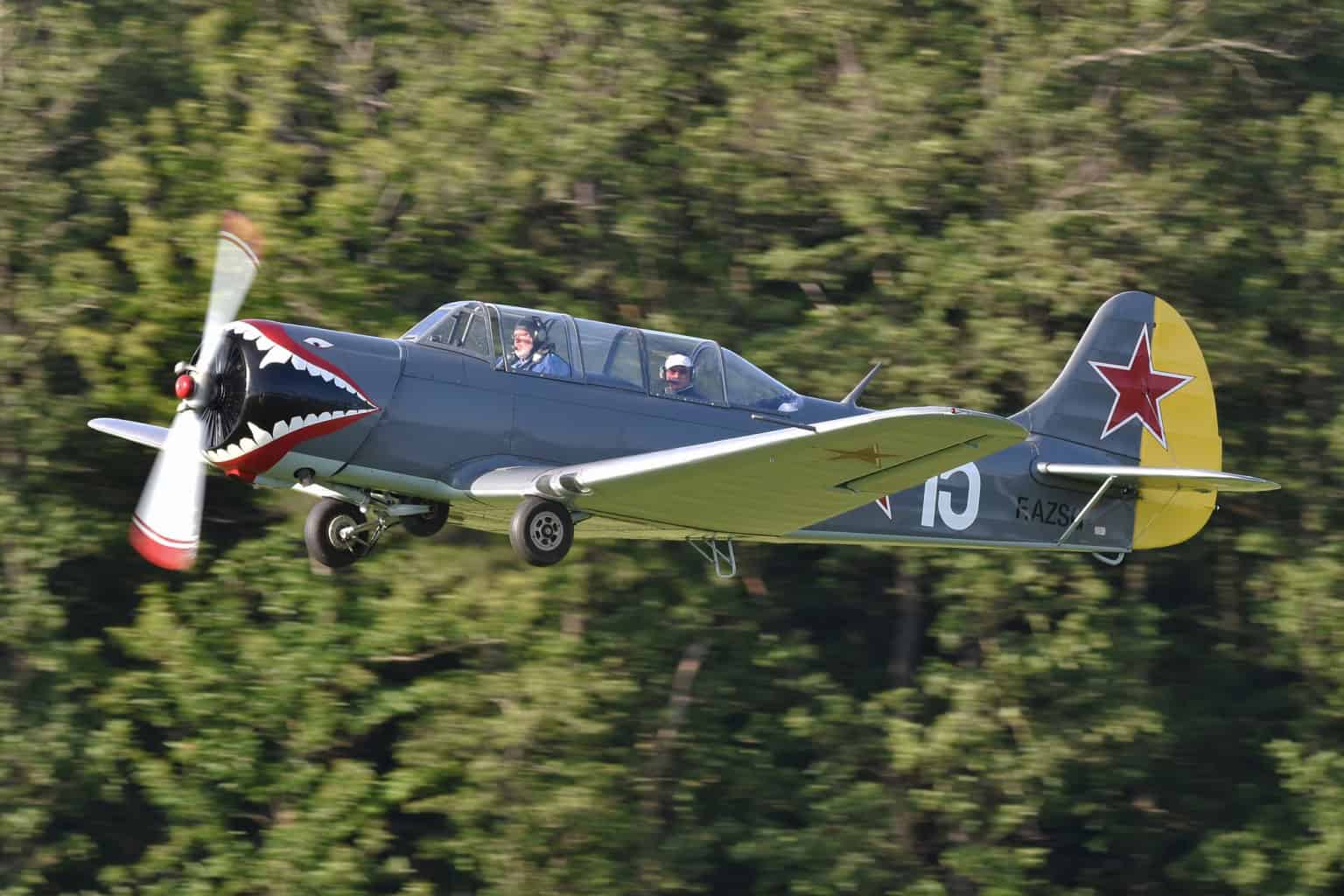

The Yak-18A has an exterior length of 8.3 meters and an exterior height of 2.5 meters. It has a tail height of 3.35 meters and a fuselage width of 0.9 meters. The retractable tricycle landing gear has a wheelbase of 2.3 meters. It has a wingspan of 10.6 meters and a wing area of 17.8 square meters.

The aircraft is powered by a single Ivchenko AI-14RF nine-cylinder, air-cooled radial engine which produces a maximum thrust of 300 horsepower and drives a two-bladed variable-pitch propeller. It has a maximum speed of 160 knots and a travel range of 380 nautical miles.

The Yak-18A can fly up to 19700 feet and can climb at a rate of 1000 feet per minute. It has a takeoff distance of 350 meters and a landing distance of 400 meters. The empty weight is 1,025 kg and the maximum takeoff and landing weight is 1,320 kg.

The aircraft has a maximum payload of 180 kg and a fuel tank capacity of 75 US gallons.

A total of around forty original Yak-18s exist around the world. Five of them are in the United States, three in Europe, and one in China- all of these are still operational.
