Mooney M22 Mustang

First pressurized Mooney

Overview

Mooney United States ICAO: M22 1965–1970 Active

The Mooney M22 Mustang was developed and produced by the Mooney Aircraft Company as a low-winged monoplane. It is developed from the Mooney M20 general aviation aircraft and the first effort of the manufacturing company to achieve a pressurized single-engine aircraft. It performed its maiden flight in September 1964 and was produced from 1965 until 1970. A total of thirty-six M22 Mustangs were built.

Live Fleet Activity (M22)

📡

Fetching live data…

Specifications

Units
Engine
1 × Lycoming TIO-541-A1A
Engine type
Piston
Power
310 hp · 231 kW
Avionics
Narco 810 , Narco 120/20, Narco 825 connected to HSI, Narco 122, Narco AT 150 Transponder King
Wing tips
No winglets
Seats
5
Crew
—
Cabin width
—
Cabin height
—
Cabin length
—
Exterior length
27 ft 0 in  ·  8.23 m
Tail height
9 ft 10 in  ·  3.00 m
Fuselage diameter
4 ft 7 in  ·  1.40 m
Wing span
35 ft 0 in  ·  10.67 m
Baggage volume
—
Gross weight
—
Empty weight
—
Max takeoff weight
3,700 lb  ·  1,650 kg
Max landing weight
3,700 lb  ·  1,650 kg
Max payload
1,250 lb  ·  550 kg
Fuel capacity
90 gal · 300 L · 300 kg (AvGas)
Max cruise speed
222 kt  ·  255 mph  ·  411 km/h
Maximum speed
—
Cruise speed
—
Approach speed
58 kt  ·  67 mph  ·  107 km/h
Range
1,297 nm  ·  1,490 mi  ·  2,400 km
Fuel burn
—
Ceiling
24,000 ft  ·  7,300 m
Rate of climb
1,125 ft/min  ·  6 m/s
Takeoff distance
1,140 ft  ·  350 m
Landing distance
960 ft  ·  290 m
(/) tap to zoom
(/)

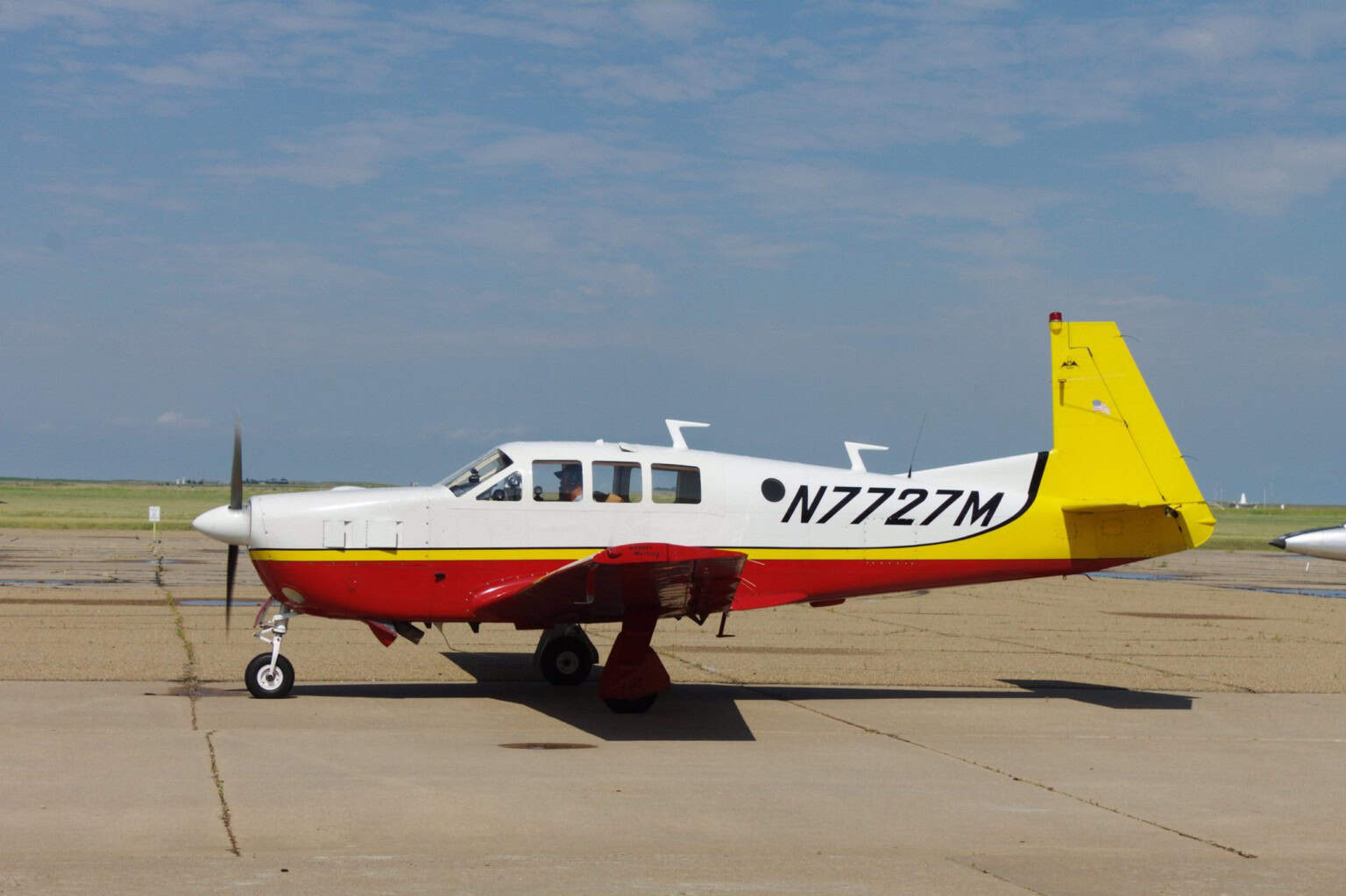

Mooney M22 Mustang ‘N7727M’

Live fleet activity details

📡
Fetching live data…
All Active Aircraft Types
Flight Airline Reg Alt Speed Heading V/S

Operational Context

The Mooney M22 Mustang was designed to be an excellent model in addition to the successful M20 piston-powered, propeller-driven, general aviation aircraft. On September 24, 1964, the first prototype took to the air for the first time. On September 26, 1966, the aircraft was awarded its type certification. Aircraft deliveries began from 1965 until 1970. A total of thirty-six Mustangs were built before production was ceased. However, the aircraft did not have successful sales and thus contributed to the manufacturing company’s bankruptcy.

The M22 Mustang can accommodate a single pilot and up to four passengers. It is a pressurized aircraft with an external length of 8.23 meters, an external height of 2 meters, and a fuselage diameter of 1.4 meters. It is a low-wing monoplane with a wingspan of 10.67 meters and a wing area of 15.51 square meters. The tail height is 3 meters. It has a retractable nosewheel landing gear and a wheelbase of 2.2 meters. The aircraft has an empty weight of 1,107 kg, a maximum payload of 564 kg, and a fuel tank capacity of 92 US gal. The maximum takeoff weight is 1,669 kg.

The aircraft is powered by a single Lycoming TIO-541-A1A engine. It is a six-cylinder, air-cooled, horizontally-opposed, direct-drive, fuel-injected, turbo supercharged piston engine rated at 310 hp thrust. It drives a two-bladed Hartzell metal constant-speed propeller with a diameter of 2.03 meters. The M22 Mustang has a maximum speed of 222 knots and a normal cruise speed of 186 knots with sixty-fice percent power. The stall speed is 58 knots with flaps and undercarriage lowered and powered off. It has a travel range of 1,297 nautical miles with forty-five minutes reserves. The aircraft can fly up to 24,000 feet and can climb at a rate of 1,125 feet per minute. The takeoff and landing run is 348 meters and 292 meters, respectively.
