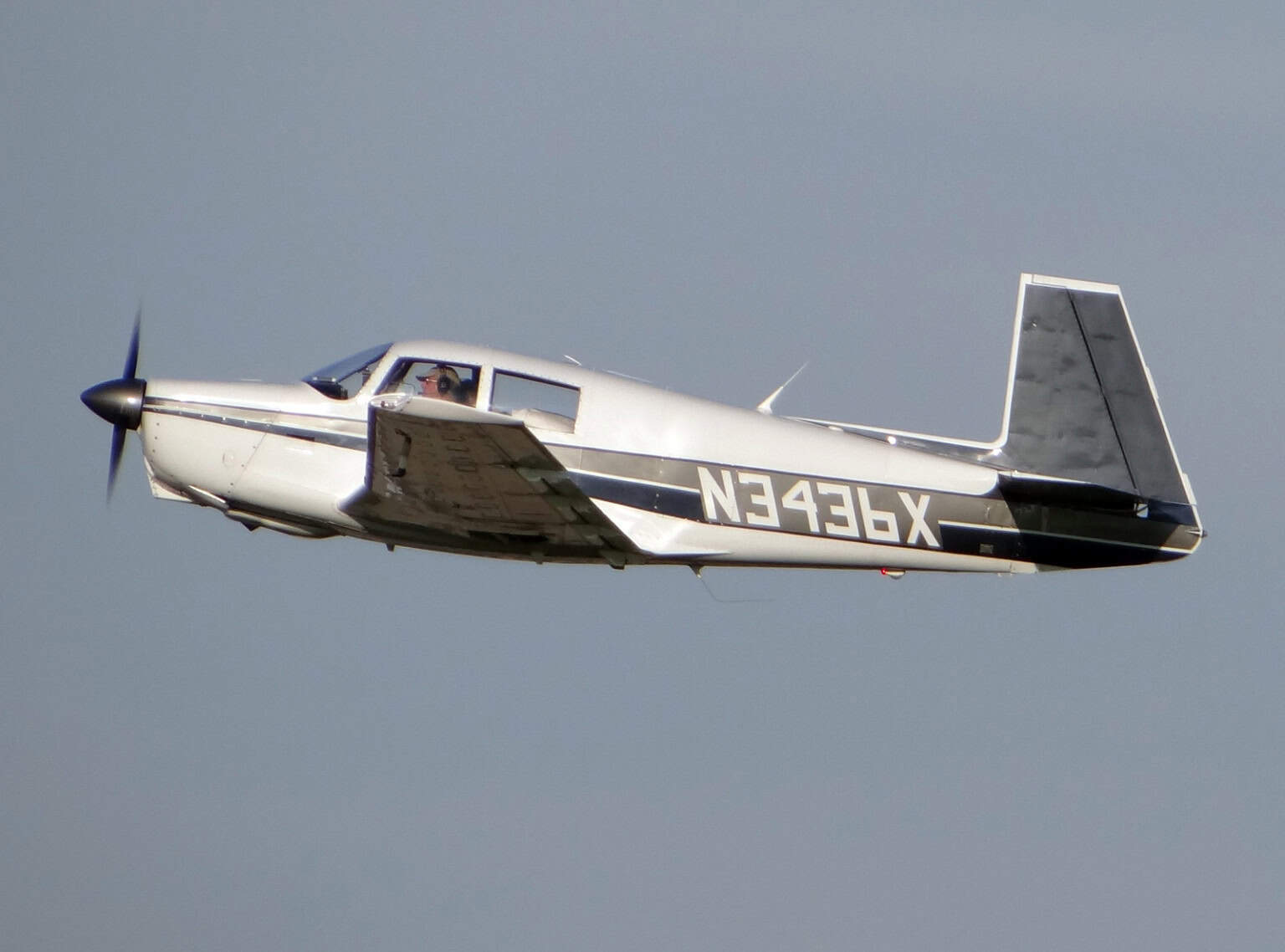

The Mooney M20C Ranger was manufactured by Mooney International Corporation as part of the series of piston-powered, propeller-driven, low-winged, four-seater general aviation aircraft derived from the Mooney M-18 Mite. The M20C Ranger was introduced in 1962 after the all-metal M20B version.

Mooney Aircraft
United States
1962 to: 1978
1x Lycoming O-360
180 horsepower
Max Cruise Speed:
174 knots
322 Km/h
Approach Speed (Vref):
50 knots
Travel range:
660 Nautical Miles
1,222 Kilometers
Fuel Economy:
Service Ceiling:
17,500 feet
Rate of Climb:
1010 feet / minute
5.13metre / second
Take Off Distance:
425 metre - 1,394.34 feet
Landing Distance:
472 metre - 1,548.54 feet
Max Take Off Weight:
1,168 Kg
2,575 lbs
Max Landing Weight:
691 Kg
1,523 lbs
Max Payload:
350 Kg
772 lbs
Fuel Tank Capacity:
52 gallon
197 litre
Baggage Volume:
0.6 m3 / 21 ft3
Seats - Economy / General:
4 seats
Seats - Business Class:
Seats - First Class:
Cabin Height:
1.11 metre - 3.64 feet
Cabin Width:
1.09 metre - 3.58 feet
Cabin Length:
3.3 metre - 10.83 feet
Exterior Length:
7.06 metre - 23.16 feet
Tail height:
2.5 metre - 8.20 feet
Fuselage Diameter:
1.2 metre - 3.94 feet
Wing Span / Rotor Diameter:
10.67 metre - 35.01 feet
Wing Tips:
No Winglets

In January 1960, the manufacturing company Mooney International Corporation began to produce aluminum-based aircraft that would replace the initial wooden structure of the M20. The company persuaded Ralph Harmon to leave McDonnel Aircraft and be in charge of the engineering efforts of the M20. Toward the end of the year, the all-metal M20B was finalized.

After a year, Mooney was able to sell M20B aircraft. In 1962, the M20C was presented. It also went by the name of Mark 21 and then the Ranger. A total of 336 M20Cs were sold in 1962.

The M20C version incorporated few upgrades compared with the M20B such as better control surfaces deflection, improved engine cooling by reducing cowl flap openings, a Hanlon and Wilson exhaust system for enhanced scavenging, a new battery access door, better landing lights, as well as lightweight floor, an added gross weight of 1,168 kg, lesser empty weight, greater maximum flap angle, and newly installed instrument panel layout.

The M20C Ranger has an exterior height of 1.7 meters, an exterior length of 7.06 meters, and a fuselage diameter of 1.2 meters. The tail height is 2.5 meters and the wheelbase is 1.8 meters. It has a low wing with a wingspan of 10.67 meters and internal baggage of 3.40 cubic meters. The aircraft can accommodate a single crew and three passengers on board. It has a maximum takeoff weight of 1,168 kg and a maximum landing weight of 691 kg. It has an empty weight of 692 kg, a maximum payload of 350 kg, and a fuel tank capacity of 52 US gal.

The M20C is powered by a single Lycoming O-360 piston engine. It is a four-cylinder, direct-drive, horizontally-opposed, air-cooled piston with a wet sump oil system and rated at 180 hp thrust. The aircraft has a maximum range of 660 nautical miles and can fly up to 17,500 feet. The rate of climb is 1,010 feet per minute. It has a maximum speed of 174 knots, a normal cruise speed of 158 knots, an economic cruise of 152 knots, and a stall speed of 50 knots.
