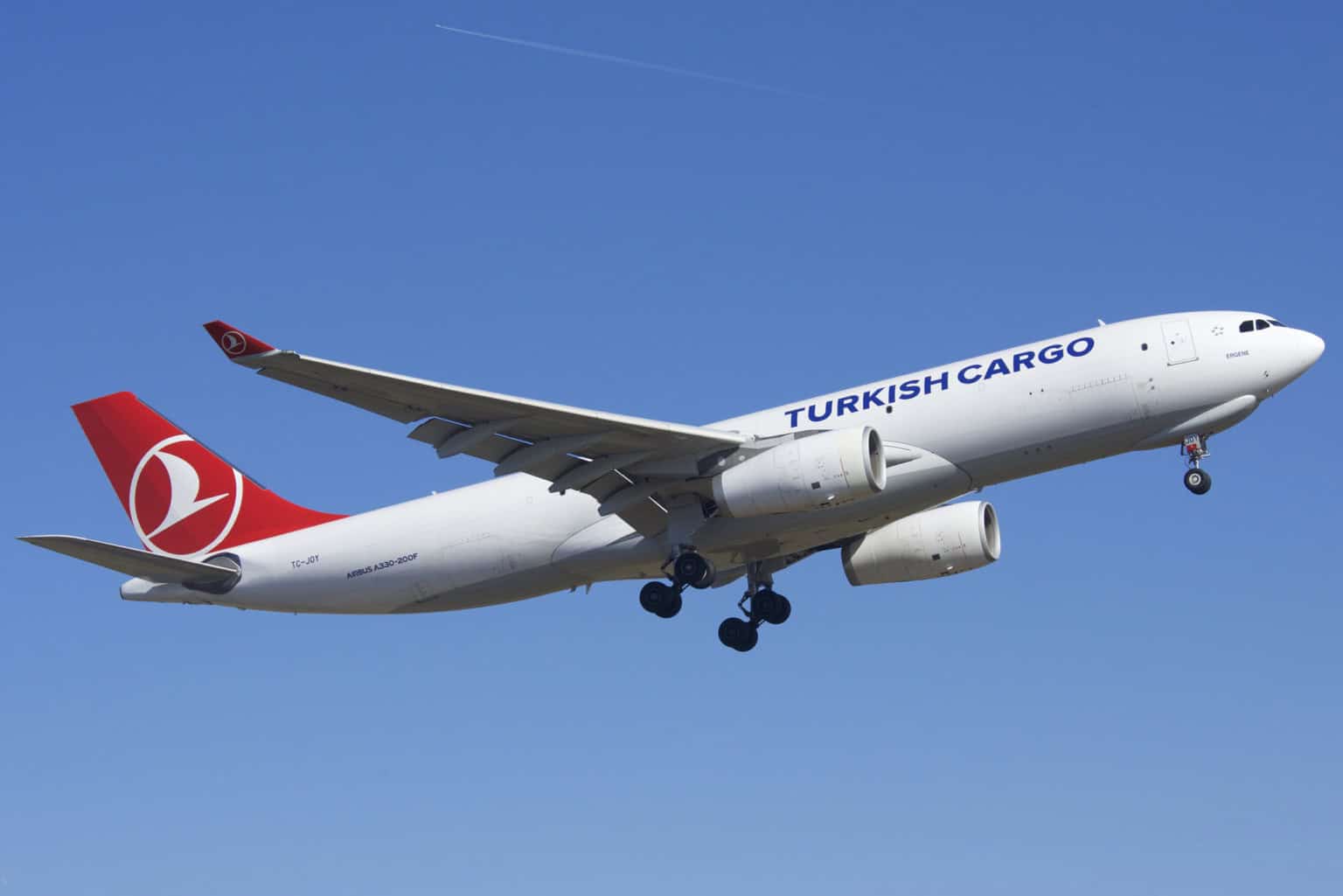

Airbus A330-200F

The dedicated widebody freighter built for long-range cargo operations.

Overview

Airbus France ICAO: A332 2012–Present Active $241.7 million (2020)

The Airbus A330-200F is a freighter derivative of the A330 passenger aircraft. Introduced in 2010, it was designed to replace older medium-capacity cargo jets. The aircraft combines modern systems with efficient twin-engine performance.

Live Fleet Activity (A332)

📡

Fetching live data…

Specifications

Units
Engine
2 × Pratt and Whitney pw4000
Engine type
Turbofan
Thrust
2 × 71,000 lbf · 316 kN
Avionics
Rockwell Collins Avionics
Wing tips
Canted winglets
Seats
2
Crew
—
Cabin width
17 ft 3 in  ·  5.26 m
Cabin height
7 ft 3 in  ·  2.20 m
Cabin length
147 ft 8 in  ·  45.00 m
Exterior length
192 ft 11 in  ·  58.80 m
Tail height
55 ft 5 in  ·  16.90 m
Fuselage diameter
18 ft 6 in  ·  5.64 m
Wing span
197 ft 10 in  ·  60.30 m
Baggage volume
16,492 ft³  ·  467.0 m³
Gross weight
—
Empty weight
—
Max takeoff weight
514,000 lb  ·  233,000 kg
Max landing weight
374,000 lb  ·  169,500 kg
Max payload
152,000 lb  ·  69,000 kg
Fuel capacity
25,750 gal · 97,500 L · 78,000 kg (Jet A)
Max cruise speed
493 kt  ·  567 mph  ·  913 km/h
Maximum speed
—
Cruise speed
—
Approach speed
140 kt  ·  161 mph  ·  259 km/h
Range
4,000 nm  ·  4,600 mi  ·  7,410 km
Fuel burn
0.11 nm/gal  ·  0.05 km/L
Ceiling
41,000 ft  ·  12,500 m
Rate of climb
12 ft/min  ·  0 m/s
Takeoff distance
9,100 ft  ·  2,770 m
Landing distance
5,700 ft  ·  1,730 m
(/) tap to zoom
(/)
Airbus A330-243F

Live fleet activity details

📡
Fetching live data…
All Active Aircraft Types
Flight Airline Reg Alt Speed Heading V/S

Operational Context

Airbus A330-200F — twin-engine widebody freighter

The A330-200F first flew in 2009 and entered service in 2010. It features structural reinforcement and a main-deck cargo door for freight operations. The aircraft retains the wing and cockpit commonality of passenger A330 variants.

Powered by two Pratt & Whitney PW4000 or Rolls-Royce Trent 700 turbofan engines producing approximately 70,000 pounds of thrust (311 kN) each depending on engine choice, the A330-200F cruises at around 470 knots (870 km/h). Maximum takeoff weight exceeds 510,000 pounds (231,333 kg). Payload capacity approaches 150,000 pounds (68,039 kg).

The A330-200F serves cargo operators worldwide. It offers improved fuel efficiency compared with older freighters. Production volumes were moderate within the competitive freight market.
