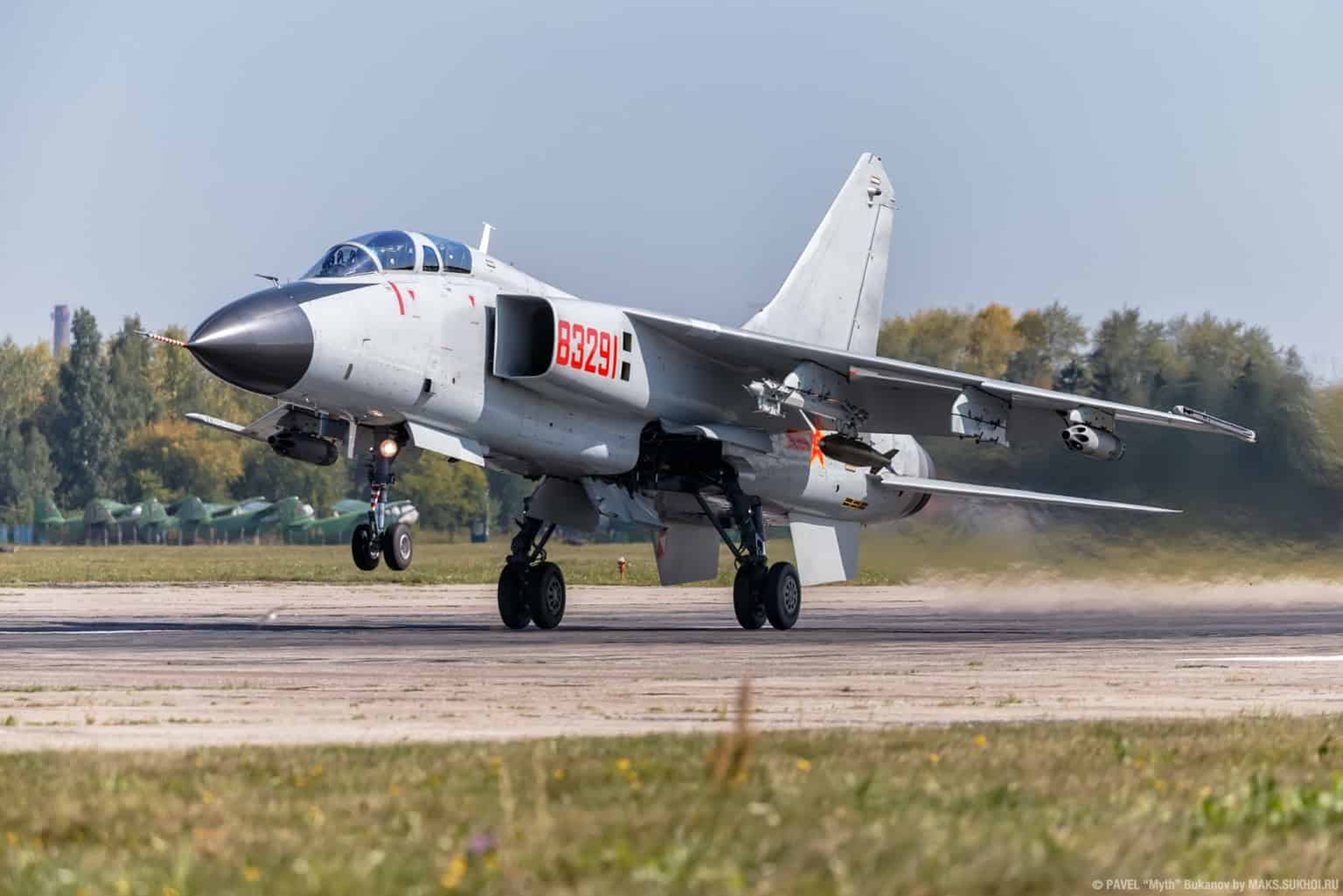

Xian JH-7 is a twin engine fighter bomber designed in order to meet the requirements of the PLANAF and the PLAAF. This two seat supersonic bomber has a maximum range of around 490 nautical miles without refueling and has a maximum speed of 976 knots.

Manufacturer:
Xian
Country:
China
Manufactured:
1988 to: 2017
ICAO:
YS11
Price:
Avionics:
JL-10A radar
Engine:
2x Xian WS-9 Qinling
Turbofan
Power:
20,520 pound-force
Max Cruise Speed:
488 knots
904 Km/h
Approach Speed (Vref):
205 knots
Travel range:
950 Nautical Miles
1,759 Kilometers
Fuel Economy:
Service Ceiling:
52,000 feet
Rate of Climb:
45000 feet / minute
228.60metre / second
Take Off Distance:
920 metre - 3,018.34 feet
Landing Distance:
1000 metre - 3,280.80 feet
Max Take Off Weight:
28,475 Kg
62,776 lbs
Max Landing Weight:
21,000 Kg
46,297 lbs
Max Payload:
9,000 Kg
19,841 lbs
Fuel Tank Capacity:
2,642 gallon
10,001 litre
Baggage Volume:
Seats - Economy / General:
2 seats
Seats - Business Class:
Seats - First Class:
Cabin Height:
Cabin Width:
Cabin Length:
Exterior Length:
22.32 metre - 73.23 feet
Tail height:
6.22 metre - 20.41 feet
Fuselage Diameter:
Wing Span / Rotor Diameter:
12.8 metre - 41.99 feet
Wing Tips:
No Winglets

Xian JH-7 Production and Development

The JH-7 codenamed “Flounder” by North Atlantic Treaty Organization (NATO), also named the FBC-1 “Flying Leopard” is a traditional design developed before the rise of stealth technology. In the early 1970s, the People’s Liberation Army Air Force had a requirement for a new fighter bomber to take over the old Harbin H-5 and Nanchang Q-5. A request was formally proposed to the Ministry of Aviation Industry, now known as the Aviation Industry Corporation of China (AVIC) who arranged a developmental program when attempts for a joint venture with foreign partners did not succeed. The manufacturer Xian Aircraft Industrial Corporation started to work on a tandem two seat supersonic fighter influenced by the all-powerful F-111 Aardvark by General Dynamics.

After some time, the idea was remodeled into a fast-anti-ship fighter aircraft that came up in the name “JH”, consisting of a pilot and weapons systems officer in a tandem arrangement. The evolved aircraft JH-7 is the China’s first design that uses computer software program.

On April 19 1983, the developmental program was approved by Deng Xiaoping, the former paramount leader of the People’s Republic of China.

By 1987, there were six prototypes built. On December 14 1988, the first prototype took its maiden flight.

The Xian JH-7 were produced from 1988 to 2017 with a total of 270 units built.

Xian JH-7 Design

The Xian JH-7 has a slab-sided fuselage with an exterior length of 22.32 meters and height of 3.73 meters. The aircraft is fitted with a single tail rudder and high-mounted compound swept wings with a wingspan of 12.8 meters and a wing area of 42.2 square meters. Two turbofan engines were attached with lateral air intakes. The wheelbase is 8.7 meters.

Xian JH-7 Cockpit and Avionics

The Xian JH-7 features a two seat tandem cockpit; the rear seat is moderately higher compared to the front seat to allow the weapon operator a better view and clear visibility. The cockpit is protected by armor plates and there is a back-hinged canopy on each seat.

The JH-7 is equipped with a Type 232H Eagle Eye multifunction PD fire-control radar while the improved JH-7A is equipped with more efficient JL-10A PD fire-control radar with good reliability and an extended detect range. The cockpit features a HK-13-03G Head Up Display (HUD), two black and white MultiFunction Displays (MFD) and one colored multifunction display. The fire control system for the YJ-8k subsonic anti-ship cruise missile is located in the seat of the weapon operator. Processing of combat data is done by the mission computer with the use of the Mil553B digital data bus.

Flight control systems of the aircraft composed of the KF-1 digital fly-by-wire technology, 8145 air-data computer, WG-5A radio altimeter, HG-563GB Inertial Navigation System/Global Positioning System, Type 210 Doppler navigation system, HZX-1B stabilization system and a microwave landing assistance system that assists the aircraft in blind landing.

Aircraft communications system composed of high frequency (HF), ultra high frequency (UHF), very high frequency (VHF), and Type 483D data transmission/Tactical Air Navigation System (TACAN).

Xian JH-7 Armaments

The aircraft is armed with a 1×23 millimeter twin-barrel Gryazev-Shipunov GSh-23L automatic cannon that can fire 300 rounds each gun. It has nine total hardpoints with a capacity of 9,000 kg external fuel and ordinance; six were under wing, two were at the wing tips and one under fuselage. There were several types of missiles from air-to-air, anti-ship, air-to-surface, and anti-radiation. There were also unguided bombs, laser guided bombs such as GB1 and GB5, and satellite guided bombs like LS-6, FT-12, GB6, FT-2, FT-3 and FT-6.

Xian JH-7 Engine and Performance

The Xian JH-7 is powered by Xian WS-9 Qinling low bypass turbofan engines with a maximum thrust of 20,520 lbf with afterburner.

The aircraft has a maximum speed of 976 knots, combat range of 950 nautical miles with one in-flight refueling and 490 nautical miles without refueling. It can fly up to 52,000 feet.

The aircraft’s maximum take off and landing weight are 28,475 kg and 21,000 kg respectively.
