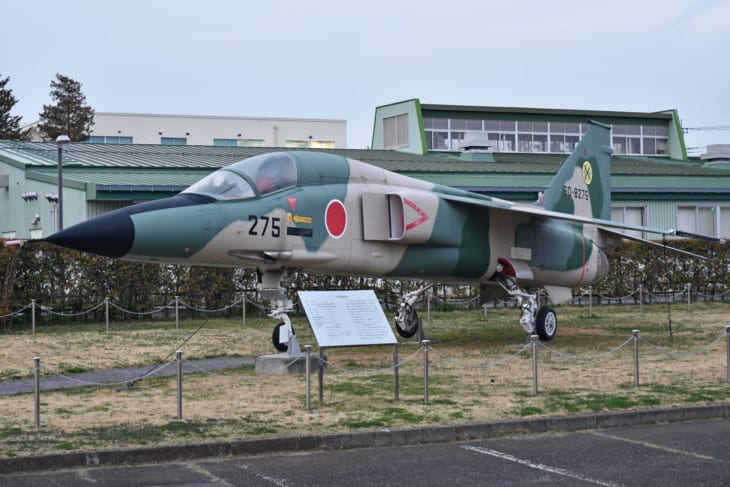

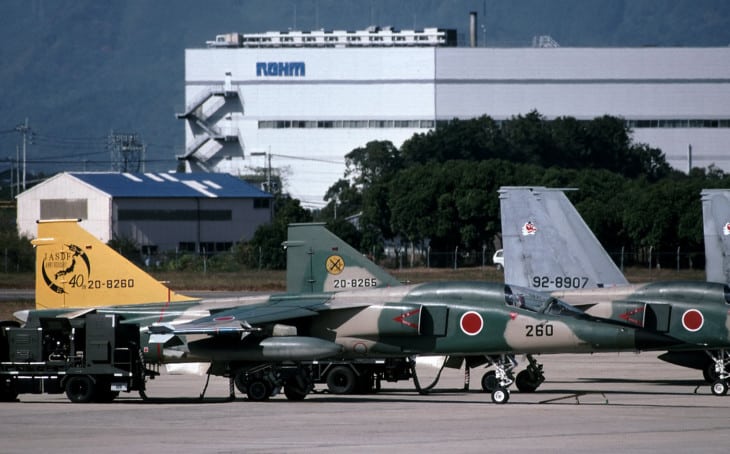

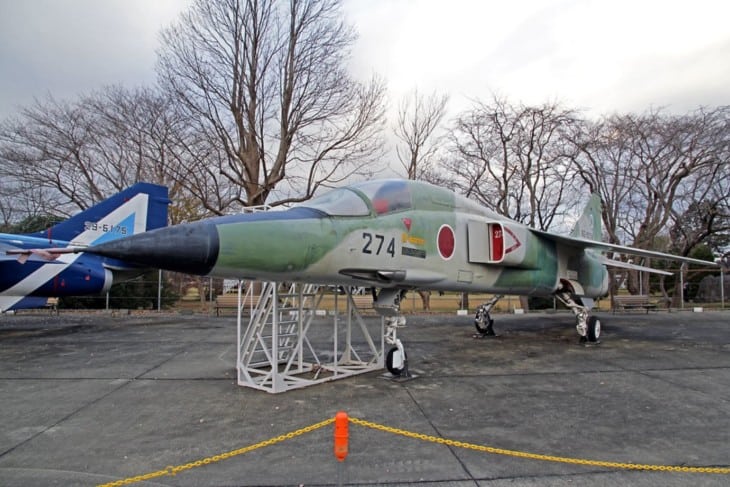

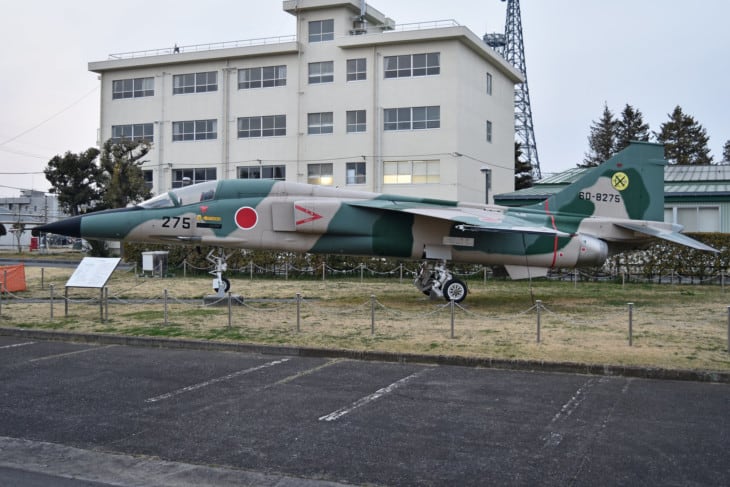

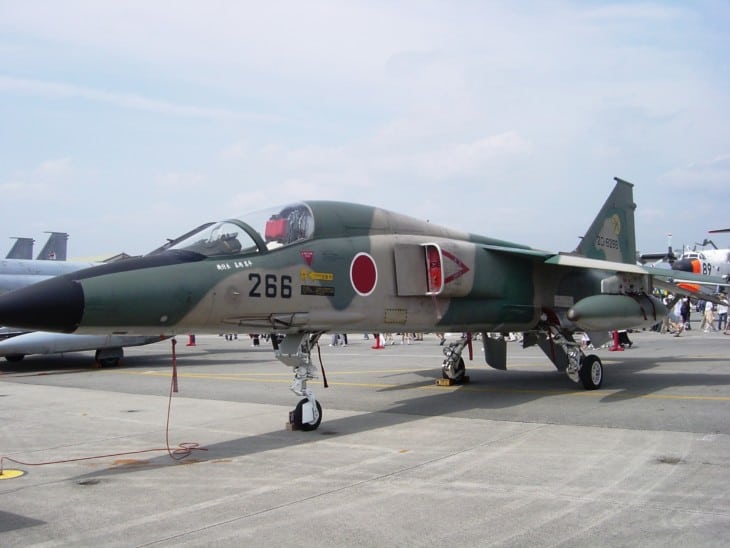

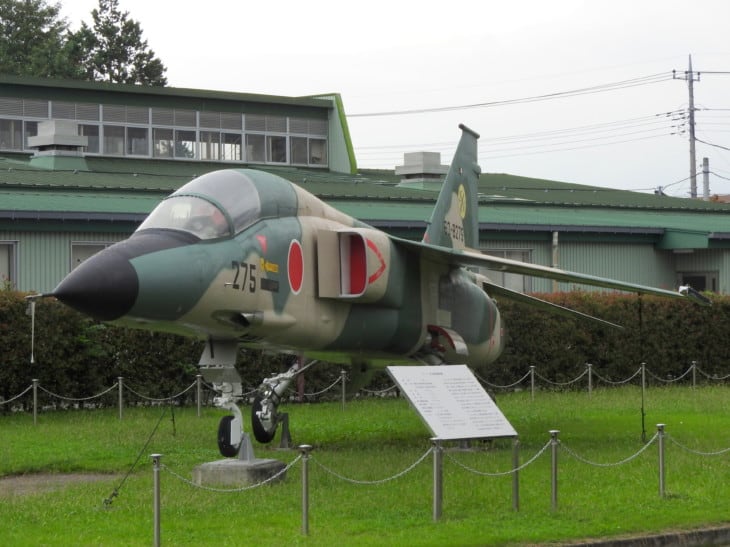

The Mitsubishi F-1 was jointly manufactured by two Japanese multinational companies, Mitsubishi Heavy Industries and Fuji Heavy Industries as a swept-wing, single-seat supersonic strike aircraft powered by twin engines. The F-1 was the first indigenously-built supersonic combat aircraft in Japan and was used by the Japan Air Self Defense Force from 1978 until 2006. It was introduced in April 1978 and was retired in March 2006.

Mitsubishi Heavy Industries
1975 to: 1987
J/AWG-12 radar, J/ASQ-1 FCS, Lear-Siegler AHRS, J/APR-3 RHAWS
2x Ishikawa-Harima TF40-801A
8,000 pound-force
Max Cruise Speed:
920 knots
1,704 Km/h
Approach Speed (Vref):
152 knots
Travel range:
1,550 Nautical Miles
2,871 Kilometers
Fuel Economy:
Service Ceiling:
50,000 feet
Rate of Climb:
35000 feet / minute
177.80metre / second
Take Off Distance:
Landing Distance:
Max Take Off Weight:
13,674 Kg
30,146 lbs
Max Landing Weight:
Max Payload:
2,720 Kg
5,997 lbs
Fuel Tank Capacity:
980 gallon
3,710 litre
Baggage Volume:
Seats - Economy / General:
1 seats
Seats - Business Class:
Seats - First Class:
Cabin Height:
Cabin Width:
Cabin Length:
Exterior Length:
17.86 metre - 58.60 feet
Tail height:
4.48 metre - 14.70 feet
Fuselage Diameter:
1 metre - 3.28 feet
Wing Span / Rotor Diameter:
7.88 metre - 25.85 feet
Wing Tips:
No Winglets

The Mitsubishi F-1 is a single-seat military aircraft with an external length of 17.86 meters, an external height of 2.8 meters, and a fuselage diameter of 1 meter. It has a tail height of 4.48 meters and a wheelbase of 5.2 meters. The wingspan is 7.88 meters and the wing area is 21.2 square meters. It has an empty weight of 6,358 kg, a maximum takeoff weight of 13,674 kg, a maximum payload of 2,720 kg, and a fuel tank capacity of 980 US gal.

The aircraft is powered by twin Ishikawa-Harima TF40-801A engines. These are afterburning turbofan engines with a two-stage LP five-stage HP compressor, and a single-stage LP single-stage HP turbine each. Each engine produces a dry thrust of 5,100 lbf and an afterburning thrust of 8,000 lbf. The F-1 has a maximum speed of 920 knots at 36,089 feet. The combat range is 300 nautical miles at a high-low-high profile with two ASM-1 missiles and one 220 US gal drop tank. It has a ferry range of 1,550 nautical miles with maximum external fuel. It can fly up to 50,000 feet and can climb at a rate of 35,000 feet per minute.

The F-1 is armed with a single 20 mm Jm61A1 Vulcan six-barrel air-cooled electrically-fired Gatling-style rotary cannon. It is also equipped with hardpoints in the centerline, four located underwing, and two wingtip missile rails. Several bombs and missiles are also included such as air-to-air missiles and air-to-surface missiles, and rocket launchers on four underwings, two wingtips, and one under-fuselage pylon.

It also carried various weapons including AIM-9 Sidewinder short-range air-to-air missile, AAM-1, Type 80 air-to-ship missile/ Type 93 air-to-ship missile anti-ship missiles, JLAU-3A 70 mm rocket pods, RL-7 70 mm rockets, RL-4 mm rockets, Mk-82 and M117 bombs, and GCS-1, infrared homing guided types of the Mk-82 and M1117.
