KAI KC-100 Naraon

The KAI KC-100 Naraon is a four-seat light aircraft developed in South Korea. Introduced in the 2010s, it supports training and liaison missions. The aircraft reflects domestic aerospace development efforts.

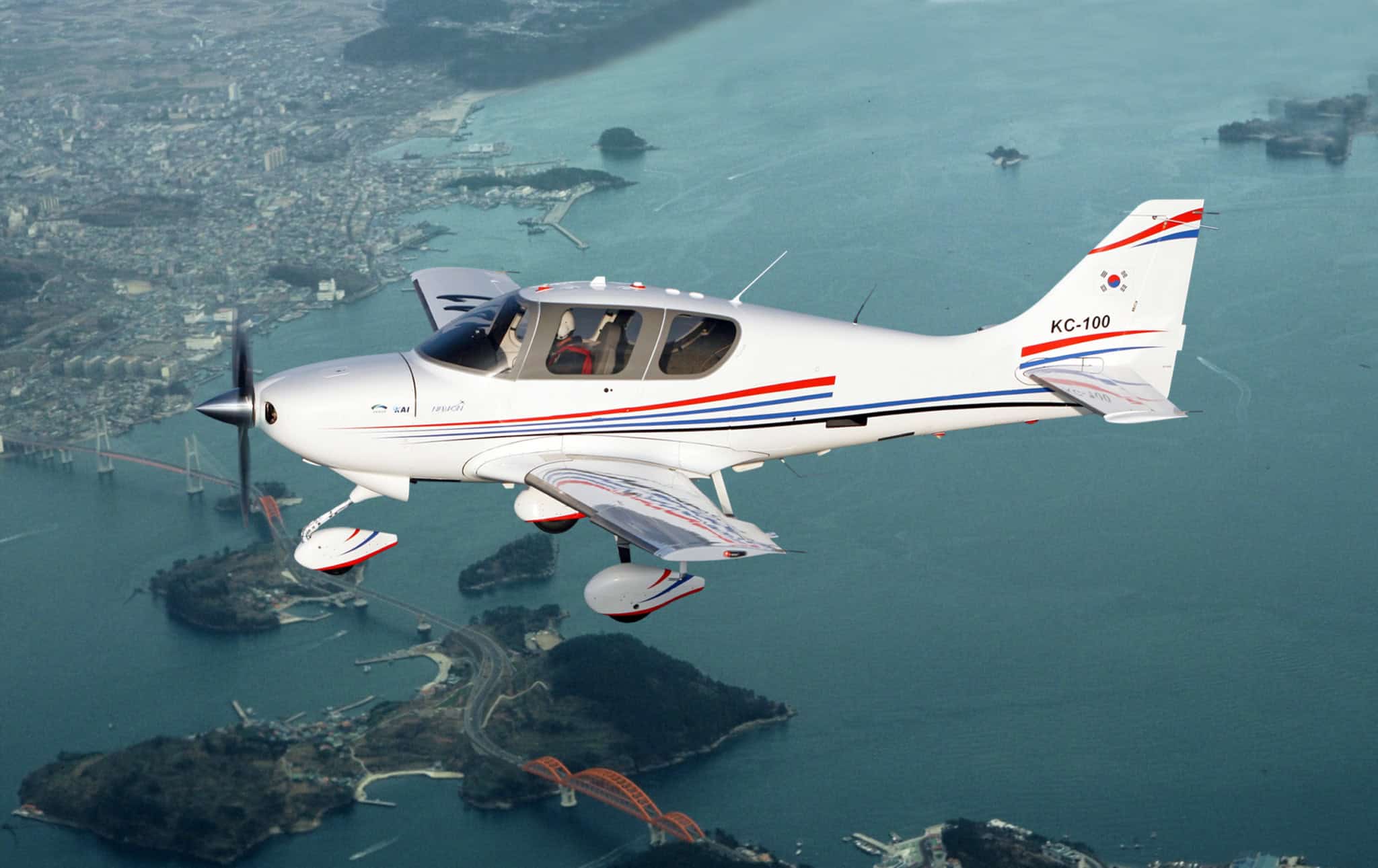

KC 100 Naraon Demo Flight © Korea Aerospace Industries

Overview

Korea Aerospace Industries Korea, South ICAO: KC100 2008–Present $570,000 (2015)

KAI KC-100 Naraon — single-engine utility aircraftThe KC-100 first flew in 2011 and entered service shortly thereafter. It features a low-wing configuration and composite airframe construction. The aircraft was designed for both civil and military training roles.A Continental piston engine producing approximately 210 horsepower powers the KC-100. Cruise speed approaches 140 knots (259 km/h). Maximum takeoff weight exceeds 3,000 pounds (1,361 kg).The Naraon represents a step forward in Korea’s light aircraft manufacturing. It supports pilot training and utility missions. Production remains limited but ongoing.

Live Fleet Activity (KC100)

📡

Fetching live data…

Specifications

Units
Engine
1 × Continental TSIOF-550-K
Engine type
Piston
Power
315 hp · 235 kW
Avionics
Avidyne
Wing tips
No winglets
Seats
4
Crew
—
Cabin width
4 ft 3 in  ·  1.30 m
Cabin height
4 ft 7 in  ·  1.40 m
Cabin length
9 ft 2 in  ·  2.80 m
Exterior length
27 ft 11 in  ·  8.50 m
Tail height
9 ft 5 in  ·  2.87 m
Fuselage diameter
4 ft 8 in  ·  1.42 m
Wing span
37 ft 4 in  ·  11.37 m
Baggage volume
—
Gross weight
—
Empty weight
—
Max takeoff weight
3,600 lb  ·  1,650 kg
Max landing weight
2,400 lb  ·  1,100 kg
Max payload
1,200 lb  ·  550 kg
Fuel capacity
90 gal · 300 L · 200 kg (AvGas)
Max cruise speed
210 kt  ·  242 mph  ·  389 km/h
Maximum speed
—
Cruise speed
—
Approach speed
68 kt  ·  78 mph  ·  126 km/h
Range
1,200 nm  ·  1,380 mi  ·  2,220 km
Fuel burn
—
Ceiling
17,400 ft  ·  5,300 m
Rate of climb
1,250 ft/min  ·  6 m/s
Takeoff distance
—
Landing distance
—
(/) tap to zoom
(/)
KC 100 Naraon Demo Flight

Live fleet activity details

📡
Fetching live data…
All Active Aircraft Types
Flight Airline Reg Alt Speed Heading V/S

Operational Context

After the success of Korean Aerospace Industries in their previous line of government and military aircraft, the company decided to develop an aircraft that is beyond conventional government-directed military projects and to produce a design suited to the commercial and civilian aviation market. In June 2008, development work formally started on the initiative. During that time, it had been expected that the project would be achieved within a five-year development period. In May 2010, the initial design phase had been accomplished and the construction of the first prototype was set to begin, with the target of completion by the end of the year.

On June 15, 2011, the flight test program started with the maiden flight of the first prototype. It was completed on March 22, 2013. After a week, the aircraft was awarded its type certificate. The manufacturing company target to secure type certification not just in South Korea but as well as from the European Aviation Safety Agency (EASA) and the Federal Aviation Administration (FAA), therefore allowing the aircraft to be sold in different countries worldwide. Approximately half of all flight tests were administered to explore and verify the aerodynamic properties of the aircraft, while seventeen percent were to test avionics, ten percent was for the engine, and seven percent were for the structure.

The KC-100 Naraon is a four-seat light aircraft used for general aviation purposes such as small-scale commercial and commuting activities, flight training, and leisure and private flights. It is constructed with an all-composite airframe built primarily from carbon fiber. This design reduces the overall weight of the aircraft, and simplifies manufacture and lessen maintenance costs. It has an exterior length of 8.5 meters, a height of 2.87 meters, and a fuselage diameter of 1.42 meters.

The KC-100 is powered by a Continental TSIOF-550-K piston engine. It produces a maximum power of 315 hp. The aircraft has a maximum cruise speed of 210 knots and a travel range of 1,200 nautical miles.
