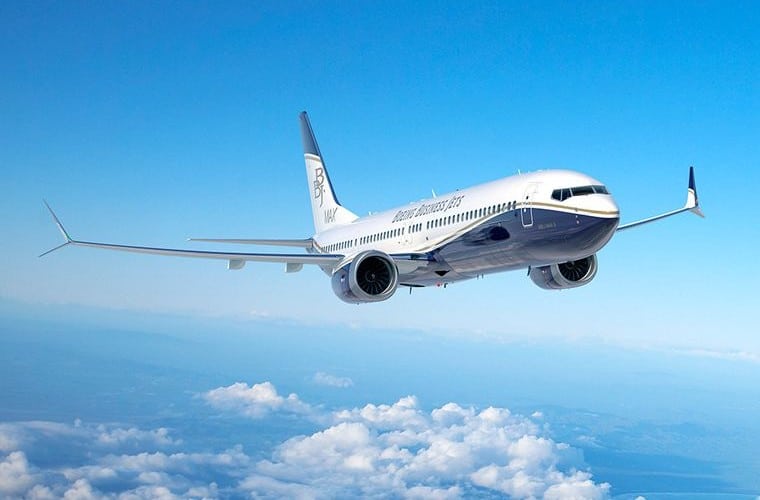

The BBJ MAX 9 is a business jet aircraft that entered the market in 2019. Equipped with two LEAP-1B turbofan engines which produce 28,000 pounds of power, the BBJ MAX 9 can accommodate eight passengers with a range of 6,515 nautical miles and a maximum cruise speed of 470 knots.

Manufacturer:
Boeing
Country:
United States
Manufactured:
1998 to: Present
ICAO:
B39M
Price:
US$107.9 million (2019)
Avionics:
Rockwell Collins
Engine:
2x CFM International LEAP
Turbofan
Power:
28,000 pound-force
Max Cruise Speed:
470 knots
870 Km/h
Approach Speed (Vref):
142 knots
Travel range:
6,515 Nautical Miles
12,066 Kilometers
Fuel Economy:
Service Ceiling:
41,000 feet
Rate of Climb:
3100 feet / minute
15.75metre / second
Take Off Distance:
2499.39 metre - 8,200.00 feet
Landing Distance:
1254.88 metre - 4,117.01 feet
Max Take Off Weight:
88,314 Kg
194,697 lbs
Max Landing Weight:
66,361 Kg
146,299 lbs
Max Payload:
17,427 Kg
38,420 lbs
Fuel Tank Capacity:
11,005 gallon
41,658 litre
Baggage Volume:
42.05 m3 / 1,485 ft3
Seats - Economy / General:
19 seats
Seats - Business Class:
Seats - First Class:
Cabin Height:
2.16 metre - 7.09 feet
Cabin Width:
3.3 metre - 10.83 feet
Cabin Length:
32.67 metre - 107.18 feet
Exterior Length:
42.18 metre - 138.38 feet
Tail height:
12.3 metre - 40.35 feet
Fuselage Diameter:
3.5 metre - 11.48 feet
Wing Span / Rotor Diameter:
35.69 metre - 117.09 feet
Wing Tips:
split: Split Scimitar Winglet

On June 17, 2015, at the Paris Airshow, the American company Boeing announced the sale of the first BBJ MAX 9 by an undisclosed European customer. Developed from the best-selling Boeing BBJ 737 MAX airliner, the BBJ MAX family features the best combination of space, comfort, and range. With an unparalleled cabin comfort, lower fuel usage, increase range capability, advanced flight deck, lower noise, and reduced emissions enable the aircraft to fully meet the different needs of business jet customers. Also, BBJ MAX owners gain from a lower total cost to own in comparison to other expensive business jets. The enhanced maintenance schedule of the aircraft drives operating costs that are almost the same as smaller business jets, and still keep relatively higher residual values.

The BBJ MAX 9 is designed with a spacious cabin- more than three times the cabin area as the majority of business jets of its kind, bespoke interiors to match the preference of VIP, and lower cabin altitude. The cabin has a length of 32.67 meters, a height of 2.16 meters, and a width of 3.3 meters.

The aircraft has an exterior length of 42.18 meters, a height of 12.3 meters, and a fuselage diameter of 3.5 meters. The MAX 9 has a wingspan of 35.69 meters and features an advanced technology winglet. The wingtip uses natural laminar flow to reduce drag while at the same time increasing the effective wingspan. This winglet is standard on all BBJ MAX aircraft.

The MAX 9 is powered by two CFM LEAP-1B engines with a maximum thrust rate of 28,000 lbf each. It has an optimized core and a fan 8-inches larger than the Boeing 737, which resulted in an unmatched range and efficiency compared with its competitors. The aircraft has a travel range of 6,515 nautical miles and a maximum cruise speed of 470 knots. The service ceiling is 41,000 feet and the rate of climb is 3,100 feet per minute.
