Short 360

Big brother of the Short 330

Overview

Short Brothers United Kingdom ICAO: SH36 1980–1991 Active $600,000 (2019)

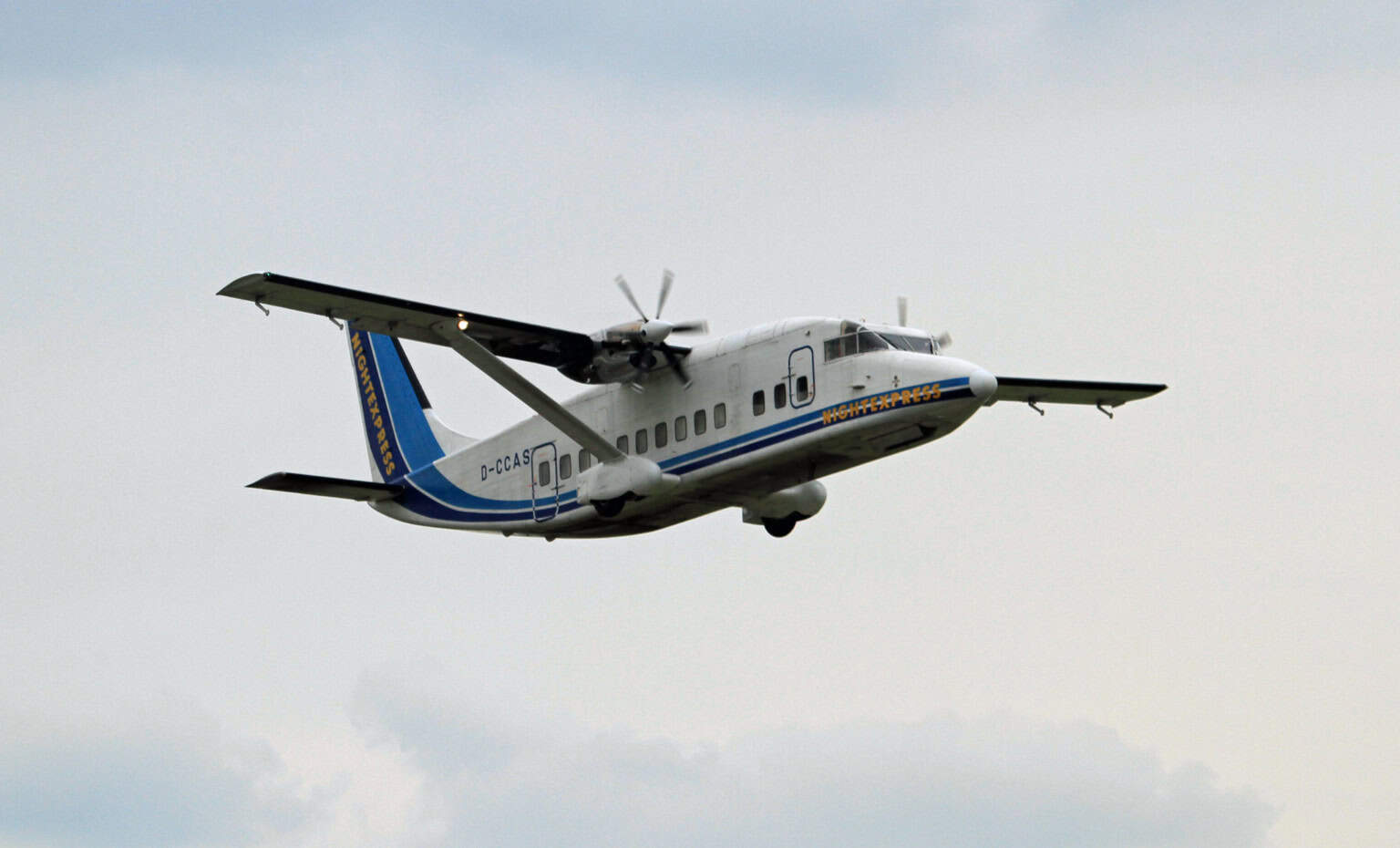

The Short 360 is a transport aircraft designed and manufactured by Short Brothers, an aerospace company in Northern Ireland in the 1980s. The Short 360 is a bigger version of the Short 330 which can accommodate up to thirty-nine passengers in flight.

Live Fleet Activity (SH36)

📡

Fetching live data…

Specifications

Units
Engine
2 × Pratt & Whitney Canada PT6A-65AR
Engine type
Turboprop
Power
2 × 1,424 shp · 1,062 kW
Avionics
—
Wing tips
No winglets
Seats
39
Crew
—
Cabin width
6 ft 1 in  ·  1.85 m
Cabin height
6 ft 2 in  ·  1.88 m
Cabin length
27 ft 7 in  ·  8.40 m
Exterior length
70 ft 10 in  ·  21.60 m
Tail height
23 ft 10 in  ·  7.27 m
Fuselage diameter
7 ft 3 in  ·  2.20 m
Wing span
74 ft 10 in  ·  22.80 m
Baggage volume
—
Gross weight
—
Empty weight
—
Max takeoff weight
27,100 lb  ·  12,300 kg
Max landing weight
26,500 lb  ·  12,000 kg
Max payload
7,700 lb  ·  3,500 kg
Fuel capacity
580 gal · 2,200 L · 1,700 kg (Jet A)
Max cruise speed
218 kt  ·  251 mph  ·  404 km/h
Maximum speed
—
Cruise speed
—
Approach speed
100 kt  ·  115 mph  ·  185 km/h
Range
570 nm  ·  660 mi  ·  1,060 km
Fuel burn
—
Ceiling
20,000 ft  ·  6,100 m
Rate of climb
952 ft/min  ·  5 m/s
Takeoff distance
4,250 ft  ·  1,300 m
Landing distance
3,600 ft  ·  1,100 m
(/) tap to zoom
(/)
BAC Express G TMRB Short 360-100

Live fleet activity details

📡
Fetching live data…
All Active Aircraft Types
Flight Airline Reg Alt Speed Heading V/S

Operational Context

In the 1970s, the commuter airline market in the world started to progress from the 20-seat configuration to wider and more convenient cabins. In 1980, the Short 360 development was unveiled to the public. On June 1, 1981, the first prototype took to the skies for the first time. After three months, on September 3, 1981, the aircraft received its type certification. On August 19, 1982, the first production aircraft took its first flight and in November 1982, it entered service with Suburban Airlines, which was later merged with Allegheny Airlines/US Airways.

Following initiating production with the standard version, the manufacturing company marketed several 360 improvements. In late 1985, the 360 Advanced with PT6A-65AR engines rated at 1,424 shaft horsepower was introduced. It was then redesignated 360-200. In March 1987, the 360-300 was introduced. It is equipped with more powerful PT6A-67R engines with six-blades propellers and designed with higher cruise speed and improved performance. It was also built in freighter configuration, designated as 360-300F, with capacity for five LD3 cargo containers. Military variants were also produced, designated as Short C-23 Sherpa B+ and C which are in service with the United States military. A total of 28 C-23B+ were produced by conversions of civilian 360 airframes, while the C-23C was a conversion of C-23B and C-23B+. In 1991, production of the Short 360 ended and has recorded 165 deliveries.

The Short 360 is derived from the Short 330. It can accommodate 36 passengers in a standard layout and up to 39 passengers in a high-density configuration. It has an external length of 21.6 meters, a height of 7.27 meters, and a diameter of 2.2 meters.

The aircraft has a maximum cruise speed of 218 knots and can travel at a range of 570 nautical miles. The service ceiling is 20,000 feet and the rate of climb is 952 feet per minute. It has a takeoff and landing distance of 1,300 meters and 1,100 meters respectively. It has a maximum takeoff weight of 12,300 kg, a maximum landing weight of 12,020 kg, and a maximum payload of 3,500 kg.
