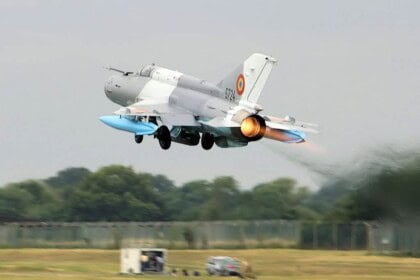

The MiG-21 is designed by the Soviet aircraft manufacturer Mikoyan-Gurevich. It is a supersonic jet fighter and interceptor aircraft which was flown by around sixty different countries around the world. The aircraft is still in service with several nations sixty years after its first flight. The MiG-21 set numerous records in the aviation industry; it was the most-produced supersonic jet aircraft as to date, the most-produced combat fighter as early as the Korean War and formerly the longest production run of a combat aircraft before it was surpassed by F-15 Eagle and F-16 Fighting Falcon.

Manufacturer:
Mikoyan Gurevich
Country:
Russia
Manufactured:
1959 to: 1985
ICAO:
MG21
Price:
US$2 million (1974)
Avionics:
SPO-3 Sirena-3M RWR, RP-21M Radar, SRZO-2 Khrom-Nikel' IFF, RSBN-2N
Engine:
1x Tumansky R-25-300
Jet
Power:
15,640 pound-force
Max Cruise Speed:
1174 knots
2,174 Km/h
Approach Speed (Vref):
130 knots
Travel range:
360 Nautical Miles
667 Kilometers
Fuel Economy:
Service Ceiling:
58,400 feet
Rate of Climb:
23600 feet / minute
119.89metre / second
Take Off Distance:
830 metre - 2,723.06 feet
Landing Distance:
550 metre - 1,804.44 feet
Max Take Off Weight:
9,800 Kg
21,605 lbs
Max Landing Weight:
Max Payload:
3,376 Kg
7,443 lbs
Fuel Tank Capacity:
1,012 gallon
3,831 litre
Baggage Volume:
Seats - Economy / General:
1 seats
Seats - Business Class:
Seats - First Class:
Cabin Height:
Cabin Width:
Cabin Length:
Exterior Length:
14.7 metre - 48.23 feet
Tail height:
4.1 metre - 13.45 feet
Fuselage Diameter:
1.24 metre - 4.07 feet
Wing Span / Rotor Diameter:
7.15 metre - 23.46 feet
Wing Tips:
No Winglets

The Mikoyan MiG-21 was a continuance of jet fighters in the Soviet Union; it began with the MiG-15 and MiG-17 which are capable of subsonic speeds, followed by the MiG-19 capable of supersonic speed.

In the early 1950s, the development of the new aircraft started. In 1954, Mikoyan Gurevich Design Bureau completed a preliminary swept-wing design designated as Ye-1. The design was immediately reworked to Ye-2 due to the underpowered engine of the first prototype.

On June 16, 1955, the first delta-wing prototype designated as Ye-4 conducted its first flight. In July 1956, it appeared in the Soviet Aviation Day Display held at Tushino airfield in Moscow.

The MiG-21bis is the ultimate development of the MiG-21 versions. It has an external length of 14.7 meters excluding pitot boom, an external height of 2.6 meters, a tail height of 4.1 meters, and a fuselage diameter of 1.24 meters. It has a wingspan of 7.15 meters and a wing area of 23 square meters.

The gross weight is 8,725 kg with two R-3S missiles. It has a maximum takeoff weight of 8,800 kg for unprepared or metal planking runway, 9,800 kg on a paved runway with standard wheels and tires, and 10,400 kg on a paved runway with larger wheels and tires.

The MiG-21bis is powered by a Tumansky R-25-300 afterburning turbojet engine with a dry thrust of 9,030 lbf and an afterburning thrust of 15,640 lbf. The aircraft has a maximum speed of 1,174 knots at 43,000 feet and 700 knots at sea level. It has a landing speed of 130 knots. The standard range is 360 nautical miles without missiles at 36,089 feet.
