Private Single Engine
Overview
The Beechcraft Bonanza G36 is the latest production variant of one of general aviation’s longest-running aircraft families. Designed for personal and business travel, it combines proven performance with updated avionics. The aircraft reflects more than seven decades of continuous Bonanza development.
Live Fleet Activity (BE36)
📡
Fetching live data…
Specifications
Units
- Engine
- 1 × Teledyne-Continental IO-550-B
- Engine type
- Piston
- Power
- 300 hp · 224 kW
- Avionics
- GARMIN G1000 NXi
- Wing tips
- No winglets
- Seats
- 6
- Crew
- —
- Cabin width
- 3 ft 6 in · 1.07 m
- Cabin height
- 4 ft 2 in · 1.27 m
- Cabin length
- 12 ft 7 in · 3.84 m
- Exterior length
- 27 ft 6 in · 8.38 m
- Tail height
- 8 ft 7 in · 2.62 m
- Fuselage diameter
- 3 ft 11 in · 1.20 m
- Wing span
- 33 ft 6 in · 10.21 m
- Baggage volume
- 11 ft³ · 0.3 m³
- Gross weight
- —
- Empty weight
- —
- Max takeoff weight
- 3,650 lb · 1,650 kg
- Max landing weight
- 3,650 lb · 1,650 kg
- Max payload
- 1,050 lb · 500 kg
- Fuel capacity
- 70 gal · 300 L · 200 kg (AvGas)
- Max cruise speed
- 176 kt · 203 mph · 326 km/h
- Maximum speed
- —
- Cruise speed
- —
- Approach speed
- 59 kt · 68 mph · 109 km/h
- Range
- 920 nm · 1,060 mi · 1,700 km
- Fuel burn
- 10.47 nm/gal · 5.12 km/L
- Ceiling
- 18,500 ft · 5,600 m
- Rate of climb
- 1,230 ft/min · 6 m/s
- Takeoff distance
- 1,910 ft · 580 m
- Landing distance
- 1,450 ft · 440 m

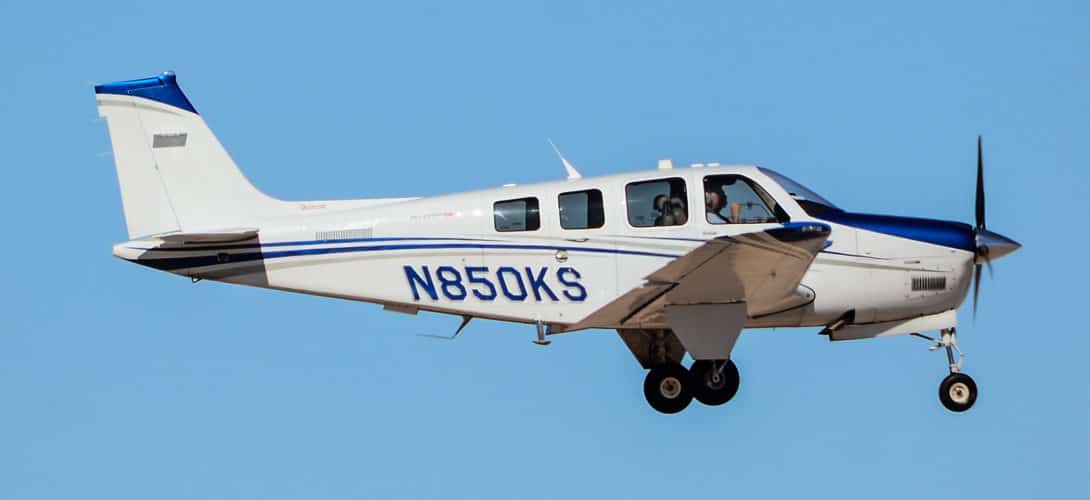

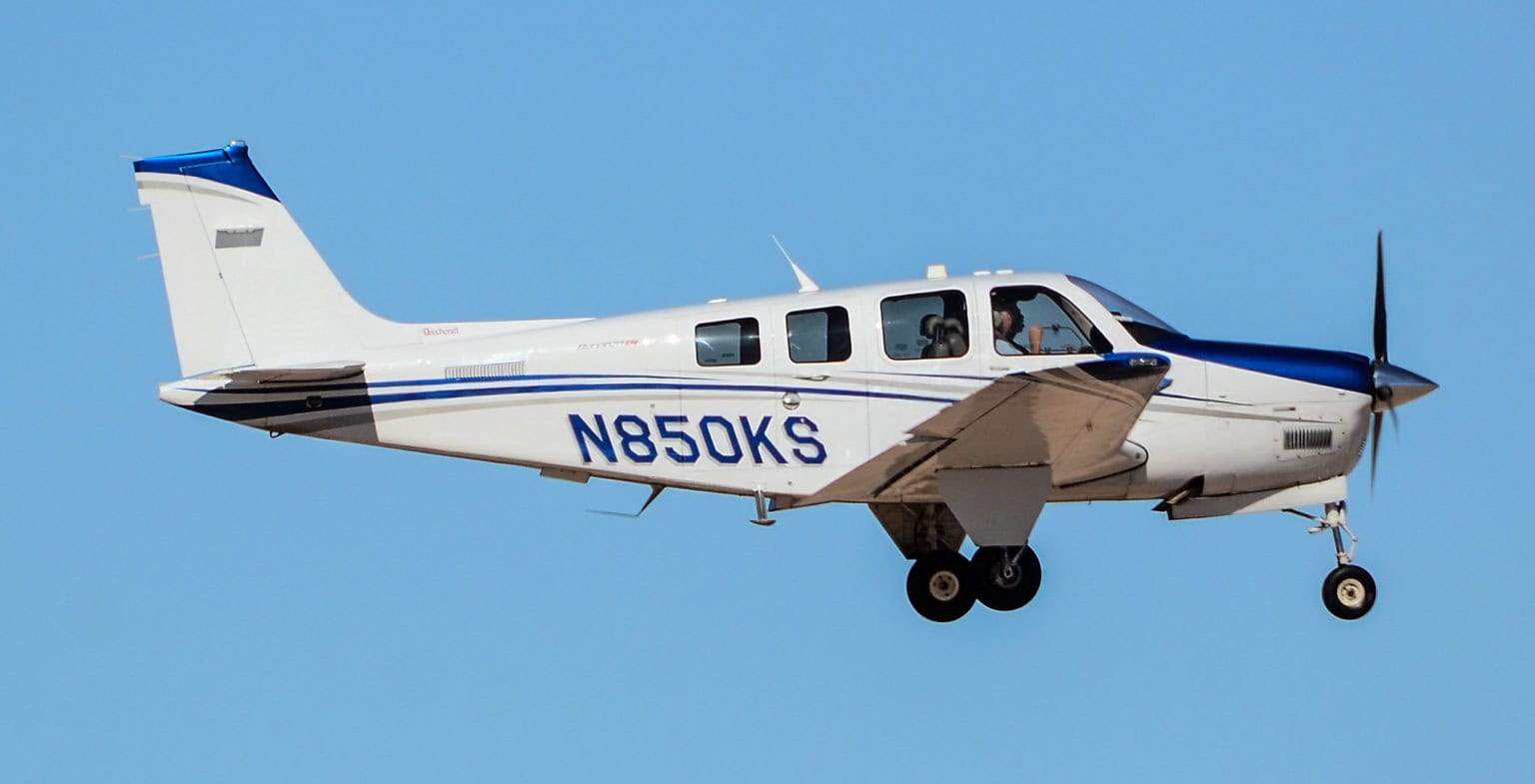

Gallery
(/)
tap to zoom
(/)
Live fleet activity details
📡
Operational Context
Beechcraft Bonanza G36 — high-performance six-seat single
The Bonanza first flew in 1945 and quickly established itself as a fast and efficient personal aircraft. Over the decades, the design evolved through numerous variants, culminating in the G36 introduced in the 2000s. The aircraft retains the low-wing configuration and retractable landing gear that defined the series while incorporating modern systems and a contemporary glass cockpit.
Powered by a Continental IO-550-B piston engine producing approximately 300 horsepower, the G36 cruises at around 175 knots (325 km/h). Maximum takeoff weight is roughly 3,650 pounds (1,655 kg). The cabin typically seats up to six occupants, with a range of approximately 900 nautical miles (1,670 km) depending on payload and fuel configuration.
The G36 has been widely used for business travel and personal cross-country flying. Its combination of speed, cabin comfort, and proven handling characteristics continues to attract owner-pilots. The model represents the final chapter of the original Bonanza lineage before production concluded in the 2020s.
Sources and references used for research and fact-checking.
