What Is Keel Effect in Aviation? How Side Area Keeps a Plane Wings Level

Keel effect is the roll stability an aircraft gets from its side area, the fuselage and vertical fin, sitting above its center of gravity (CG). When a wing drops and the airplane slips sideways, the air pushes on that side area, and because the push acts above the CG, it rolls the airplane back toward wings level.

It is one of four design factors the FAA lists for lateral stability, alongside dihedral, sweepback and weight distribution. Side area below the CG does the opposite and makes the airplane less stable in roll.

Pilots are often taught that a high-wing airplane rights itself because its fuselage hangs underneath like a pendulum. At least one aircraft designer calls that explanation incorrect, and the real reason is more interesting.

What Is Aircraft Stability?

Stability is how an aircraft reacts when something, a gust or a bump of turbulence, knocks it away from the attitude it was flying. The FAA splits it into two kinds: static and dynamic.

Static stability is the airplane’s initial tendency after the disturbance. Positive static stability means it starts to move back toward where it was, neutral means it stays in the new attitude, and negative means it keeps moving away.

Dynamic stability is what happens over time. With positive dynamic stability the motion shrinks and dies out, with neutral it keeps going at the same size, and with negative it grows bigger with each swing.

More stability is not always better. Stability works against maneuverability, the ease with which the pilot can make the airplane turn, climb or descend.

The FAA notes that a training aircraft is quick to respond to the controls, while a large transport aircraft feels heavy on them. Fighters go further and are often built with less dihedral effect so they roll more readily.

What Is Lateral Stability?

An aircraft can be stable or unstable around each of its three axes. The lateral axis runs from wingtip to wingtip, the longitudinal axis from nose to tail, and the vertical axis straight up and down through the CG.

The stability names follow the motion, not the axis, which is easy to mix up. Lateral stability is stability in roll, about the longitudinal axis, when one wing drops lower than the other.

Longitudinal stability covers pitch and depends on CG location and the horizontal stabilizer. Directional stability covers yaw and comes from the fuselage side area behind the CG and the vertical stabilizer, which point the nose into the wind like a weather vane.

How Does Keel Effect Work?

A disturbed wing starts the chain. When a gust rolls the airplane, it begins to slip sideways toward the low wing, so the relative wind now arrives partly from that side.

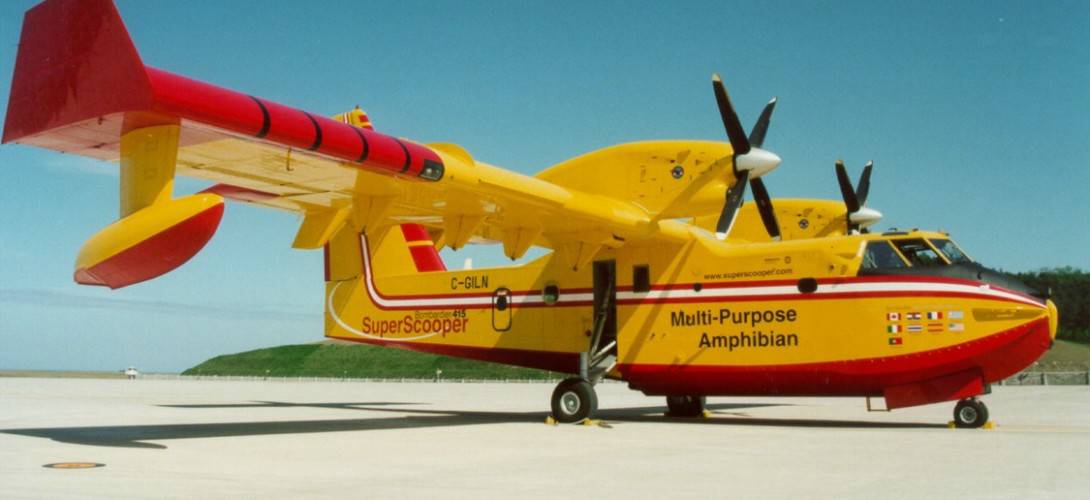

That sideways airflow presses on everything with a flat side: the fuselage, the fin and, on a seaplane, the floats. Together they make up what the FAA calls the keel area.

Where that side force acts decides what it does. If it acts above the CG, it pushes the top of the airplane away from the slip and lifts the low wing back up.

That is why the FAA says laterally stable aircraft are built with the greater portion of their keel area above the CG. The vertical fin is the clearest example, since it stands up above the fuselage.

Side area below the CG does the reverse and reduces stability. Seaplane designers watch this closely, because floats generate a strong side force a long way below the CG.

Keel Effect vs. Pendulum Effect: What Really Levels a High Wing

The FAA’s Pilot’s Handbook of Aeronautical Knowledge says that when a high-wing airplane dips a wing, the fuselage weight acts like a pendulum and returns it to level. Pendulum effect is also used as another name for keel effect.

The name fits only loosely. A lower CG gives side forces above it a longer lever arm, so the effect works because the moment arm is longer, “not because of gravitational forces,” as Wikipedia’s entry on keel effect puts it.

Barnaby Wainfan put it bluntly in his Wind Tunnel column for Kitplanes in 2008: the high-wing difference “is often attributed to a pendulum effect, but this explanation is incorrect.” The real cause is the way the fuselage and wing interfere with each other’s airflow in a sideslip.

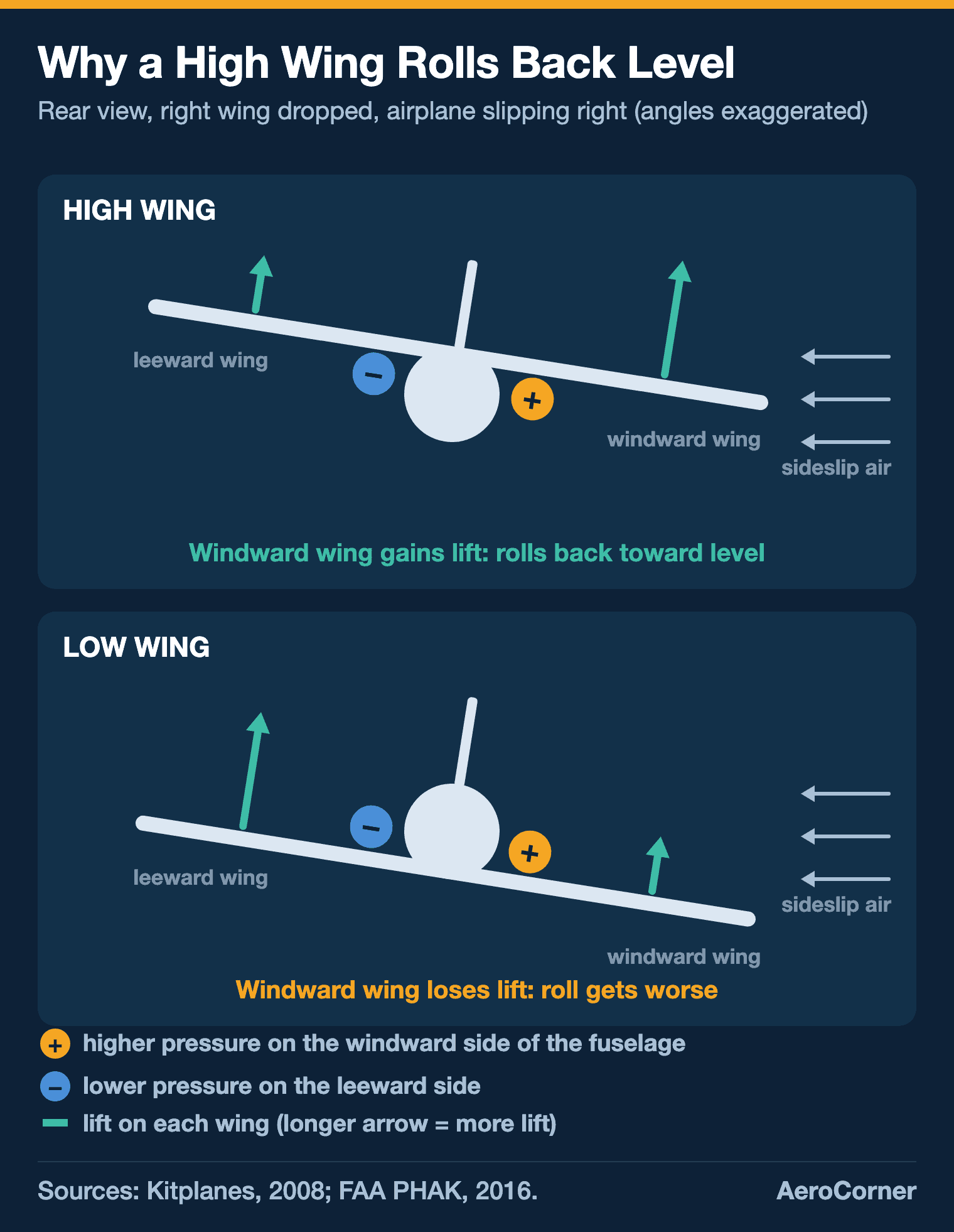

In a slip, the fuselage blocks the sideways flow, so pressure rises on its windward side and falls on its leeward side. With a high wing, the higher pressure pushes up on the underside of the windward wing and adds lift, while the lower pressure on the other side takes lift away from the leeward wing.

The net result rolls the airplane back toward level, exactly as extra dihedral would. With a low wing, the same pressures act on the upper surface of the wings and the effect flips, working like anhedral instead.

The FAA puts a number on it: a high wing provides about 5 degrees of effective dihedral over a low-wing configuration. That is why high-wing airplanes need less built-in wing angle than low-wing ones.

The Other Ways an Airplane Gets Lateral Stability

Keel effect is rarely enough on its own. Most airplanes combine it with dihedral and, on faster designs, sweepback.

Dihedral

Look at most airplanes from the front and the wings angle upward, so the tips sit higher than the roots. That upward angle from horizontal is called dihedral.

When a wing drops and the airplane slips, the wing slipping into the wind meets the air at a higher angle of attack and makes more lift. The far wing loses some angle of attack, and the difference rolls the airplane back toward level.

Sweepback

A swept wing’s leading edge slopes backward from the root to the tip. Sweep is used mainly to delay compressibility effects at high speed, but it also helps in roll.

When a swept-wing airplane slips or drops a wing, the low wing presents its leading edge more squarely to the airflow, gains lift and rises. The FAA’s rule of thumb is that about 10 degrees of sweep adds roughly 1 degree of effective dihedral.

Weight Distribution

Where the CG sits matters as much as where the side area is. A lower CG puts more of the keel area above it and gives every side force above it a longer lever arm, which strengthens keel effect.

Can an Airplane Have Too Much Keel Effect?

Yes. Every source of roll stability adds up, and an airplane that fights every roll input is hard to maneuver.

Some large high-wing aircraft cancel part of it with anhedral, a downward wing angle. The Lockheed C-5 Galaxy and the Antonov An-124 both have high wings that droop toward the tips.

Roll stability also has to be balanced against directional stability. The FAA explains that when directional stability is very strong compared with dihedral effect, the airplane drifts into a slow spiral. Manufacturers aim for a midpoint, and most accept a mild spiral tendency rather than a tendency to Dutch roll.
