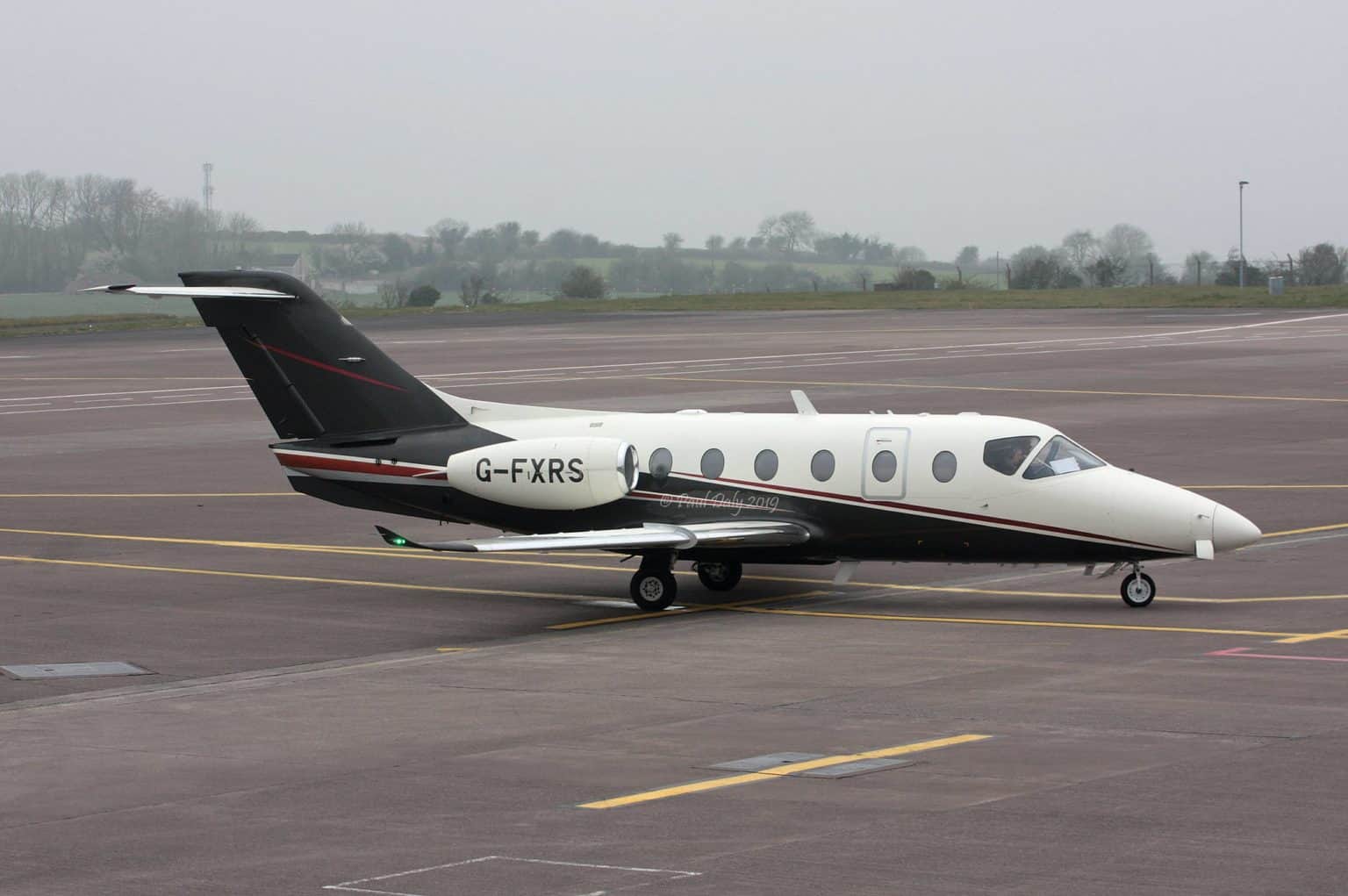

A technologized, refashioned and modified version of the Beechcraft Hawker 400A/XP with specialized features and specifications. The Nextant 400XT has an increased maximum range of 2,108 nautical miles and can fly up to 45,000 feet.

Manufacturer:
Nextant Aerospace
Country:
United States
Manufactured:
2010 to: Present
ICAO:
NX40
Price:
US$4.95 million (2019)
Avionics:
Rockwell Collins Pro Line 21
Engine:
2x Williams FJ44-3AP
Turbofan
Power:
3,000 pound-force
Max Cruise Speed:
471 knots
872 Km/h
Approach Speed (Vref):
117 knots
Travel range:
2,160 Nautical Miles
4,000 Kilometers
Fuel Economy:
Service Ceiling:
45,000 feet
Rate of Climb:
2500 feet / minute
12.70metre / second
Take Off Distance:
1164 metre - 3,818.85 feet
Landing Distance:
883 metre - 2,896.95 feet
Max Take Off Weight:
7,393 Kg
16,299 lbs
Max Landing Weight:
7,121 Kg
15,699 lbs
Max Payload:
1,120 Kg
2,469 lbs
Fuel Tank Capacity:
590 gallon
2,233 litre
Baggage Volume:
1.31 m3 / 46 ft3
Seats - Economy / General:
8 seats
Seats - Business Class:
Seats - First Class:
Cabin Height:
1.45 metre - 4.76 feet
Cabin Width:
1.5 metre - 4.92 feet
Cabin Length:
4.72 metre - 15.49 feet
Exterior Length:
14.75 metre - 48.39 feet
Tail height:
4.24 metre - 13.91 feet
Fuselage Diameter:
1.75 metre - 5.74 feet
Wing Span / Rotor Diameter:
13.25 metre - 43.47 feet
Wing Tips:
No Winglets

Nextant 400XT Production and Development

Nextant Aerospace is an American aircraft company that specializes in rebuilding or remanufacturing of business aircraft. It is the first aerospace company to present the idea of remanufacturing business jets worldwide.

In 2007, Nextant Aerospace launched their initial program- the Nextant 400XT.

The Nextant 400XT is the first aircraft produced by the company. It is a remanufactured version of the Hawker 400A/XP by Hawker Beechcraft Corporation.

In March 2010, the aircraft took its first test flight. In October 2011, the Nextant 400XT received its final certification from the Federal Aviation Administration (FAA), then In December 2012, it was awarded the European Aviation Safety Agency certification (EASA).

Nextant 400XT Orders and Deliveries

On October 19 2010, Flight Options announced a $150 million contract for orders of forty units of Nextant 400XT jets. In October 2011, the first Nextant 400XT was delivered at the 64th National Business Aviation Association (NBAA) Annual Meeting and Convention.

On August 28 2012, the aircraft was delivered to a private customer in the Czech Republic. This is the sixteenth delivery of the Nextant 400XT. The undisclosed customer, together with Time Air collaborated with Nextant in providing demonstration flights for soon to be buyers in Europe.

Also on the same month, Asia Pacific Jet placed a $45 million contract for ten Nextant 400XTs. The aircraft will be delivered over a span of three years, some will be converted into air ambulances while the others will stay with normal business jet configuration. The first two 400XTs were expected to be delivered by the end of 2012.

In February 2013, Nextant Aerospace delivered the aircraft to a Swiss customer, TAG Aviation.

Nextant 400XT Design

Nextant Aerospace made various modifications to the 400XT. The first remanufactured aircraft of the company features an integrated avionics suite, new turbofan engines, numerous aerodynamic and airframe improvements with a sleek engine cowling, nacelles, and a restrengthened engine beam and mounting system.

The Nextant 400XT has an external length of 14.75 meters, height of 4.24 meters and fuselage diameter of 1.75 meters. It has a wheelbase of 5.9 meters and a wingspan of 13.25 meters.

Nextant 400XT Cabin

The aircraft has a customized cabin with a length of 4.72 meters, width of 1.5 meters and height of 1.45 meters. The aircraft interior is well-known with its one of a kind flat floor design and squared oval cabin cross section. Numerous interior designs are available depending on the preference of the user. It has a 1.50 cubic meters baggage compartment volume.

The cabin is equipped with a cabin management system, an in-flight entertainment (IFE), distinctive LED lights, and an Aircell Axxess cabin communication system.

The aircraft can accommodate up to eight passengers. The seven-seated business configuration has a galley located on the right side and a belted lavatory seat located in the aft compartment. There is a 0.75 cubic meter cabin volume and a 1.590 cubic meter total baggage volume.

The six-seated executive configuration features a refreshment galley located on the left side of the cabin, baggage is positioned on the right side, and a belted lavatory seat located in the rear compartment. There is a 0.90 cubic meter cabin baggage volume and a 1.65 cubic meter total baggage volume.

Nextant 400XT Avionics

The aircraft features the Collins Aerospace Proline 21 Avionics Suite, an established system with the best combination of features and quality. The standard configuration has four Liquid Crystal Displays (LCD), dual Altitude and Heading Reference System (AHRS), a Global Positioning System (GPS), Automatic Dependent Surveillance Broadcast (ADS-B Out) Version 2 (DO-260B), Wide Area Augmentation System (WAAS)/ Localize Performance with Vertical Guidance (LPV), Terrain Avoidance and Warning System (TAWS), Integrated Flight Information System (IFIS) electronic charts with enhanced maps, and dual Control Display Unit (CDU-6200).

Nextant 400XT Engine and Performance

The aircraft is powered by Williams FJ44-3AP turbofan engines. It has a 3,000 lbf maximum thrust and decreases fuel burn by 20 percent. The Nextant 400XT can fly up to 45,000 feet, has a maximum cruise speed of 471 knots and a travel range of 2,160 nautical miles. It has a maximum take off and landing weight of 7,393 kg and 7,121 kg respectively.
