Hawker 850XP

The upgraded midsize jet built for enhanced performance and avionics.

Add AeroCorner as a preferred source on Google
Hawker 850XP

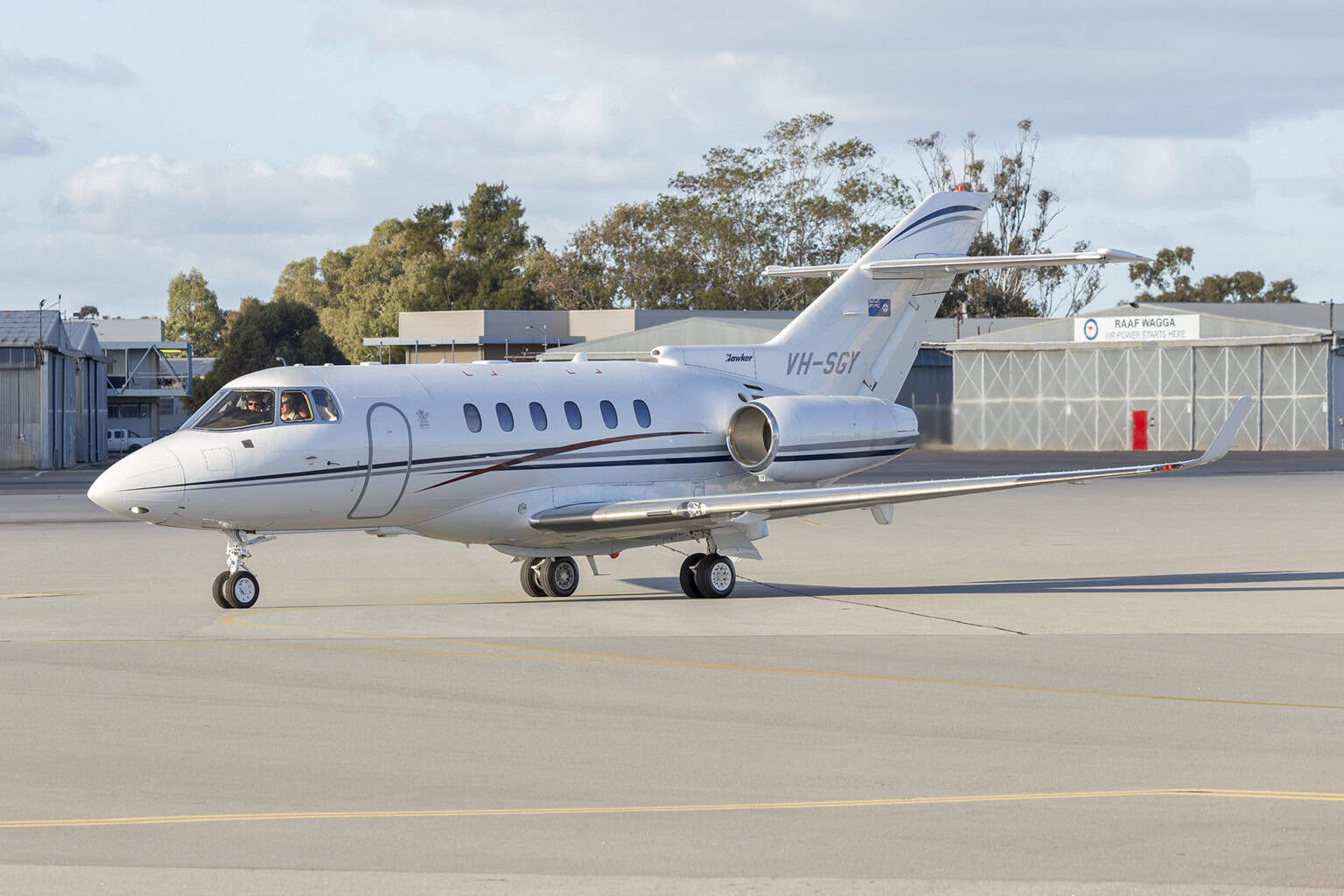

Raytheon Hawker 850XP at Wagga Wagga Airport – © Bidgee

Get the Newsletter

The latest aviation news and stories sent to your inbox.

Overview

Hawker Beechcraft United States ICAO: H25B 1985–2013 Active $13.7 million

The Hawker 850XP is an advanced development of the Hawker 800 series. Entering service in the mid-2000s, it incorporated aerodynamic refinements and updated flight systems. The aircraft remains a common sight in midsize business fleets.

Live Fleet Activity (H25B)

📡

Fetching live data…

Specifications

Units
Engine
2 × Honeywell TFE731-5BR turbofan
Engine type
Turbofan
Thrust
2 × 4,660 lbf · 21 kN
Avionics
Collins Pro Line 21, Hawker FMS-6000 Pilot’s Guide
Wing tips
Blended tips
Seats
13
Crew
—
Cabin width
6 ft 0 in  ·  1.83 m
Cabin height
5 ft 9 in  ·  1.75 m
Cabin length
21 ft 4 in  ·  6.50 m
Exterior length
51 ft 2 in  ·  15.60 m
Tail height
18 ft 1 in  ·  5.50 m
Fuselage diameter
7 ft 0 in  ·  2.13 m
Wing span
54 ft 4 in  ·  16.56 m
Baggage volume
49 ft³  ·  1.4 m³
Gross weight
—
Empty weight
—
Max takeoff weight
28,000 lb  ·  12,700 kg
Max landing weight
23,300 lb  ·  10,600 kg
Max payload
2,100 lb  ·  950 kg
Fuel capacity
1,490 gal · 5,600 L · 4,500 kg (Jet A)
Max cruise speed
430 kt  ·  495 mph  ·  796 km/h
Maximum speed
—
Cruise speed
—
Approach speed
115 kt  ·  132 mph  ·  213 km/h
Range
2,710 nm  ·  3,120 mi  ·  5,020 km
Fuel burn
1.77 nm/gal  ·  0.87 km/L
Ceiling
41,000 ft  ·  12,500 m
Rate of climb
3,415 ft/min  ·  17 m/s
Takeoff distance
5,650 ft  ·  1,720 m
Landing distance
2,300 ft  ·  700 m
(/) tap to zoom
(/)
2006 Raytheon HAWKER 850XP

Live fleet activity details

📡
Fetching live data…
All Active Aircraft Types
Flight Airline Reg Alt Speed Heading V/S

Operational Context

Hawker 850XP — midsize business jet

The 850XP first flew in 2005 and entered service in 2006. Winglets improved efficiency and extended range compared with earlier variants. The cockpit featured updated avionics for enhanced situational awareness.

Two Honeywell TFE731 turbofan engines producing approximately 4,660 pounds of thrust (21 kN) each power the aircraft. Cruise speed approaches 450 knots (833 km/h). Maximum takeoff weight exceeds 28,000 pounds (12,701 kg), with range near 2,700 nautical miles (5,000 km).

The 850XP served corporate and charter operators globally. Its blend of performance and comfort sustained strong demand. Production ended as newer models entered the market.
