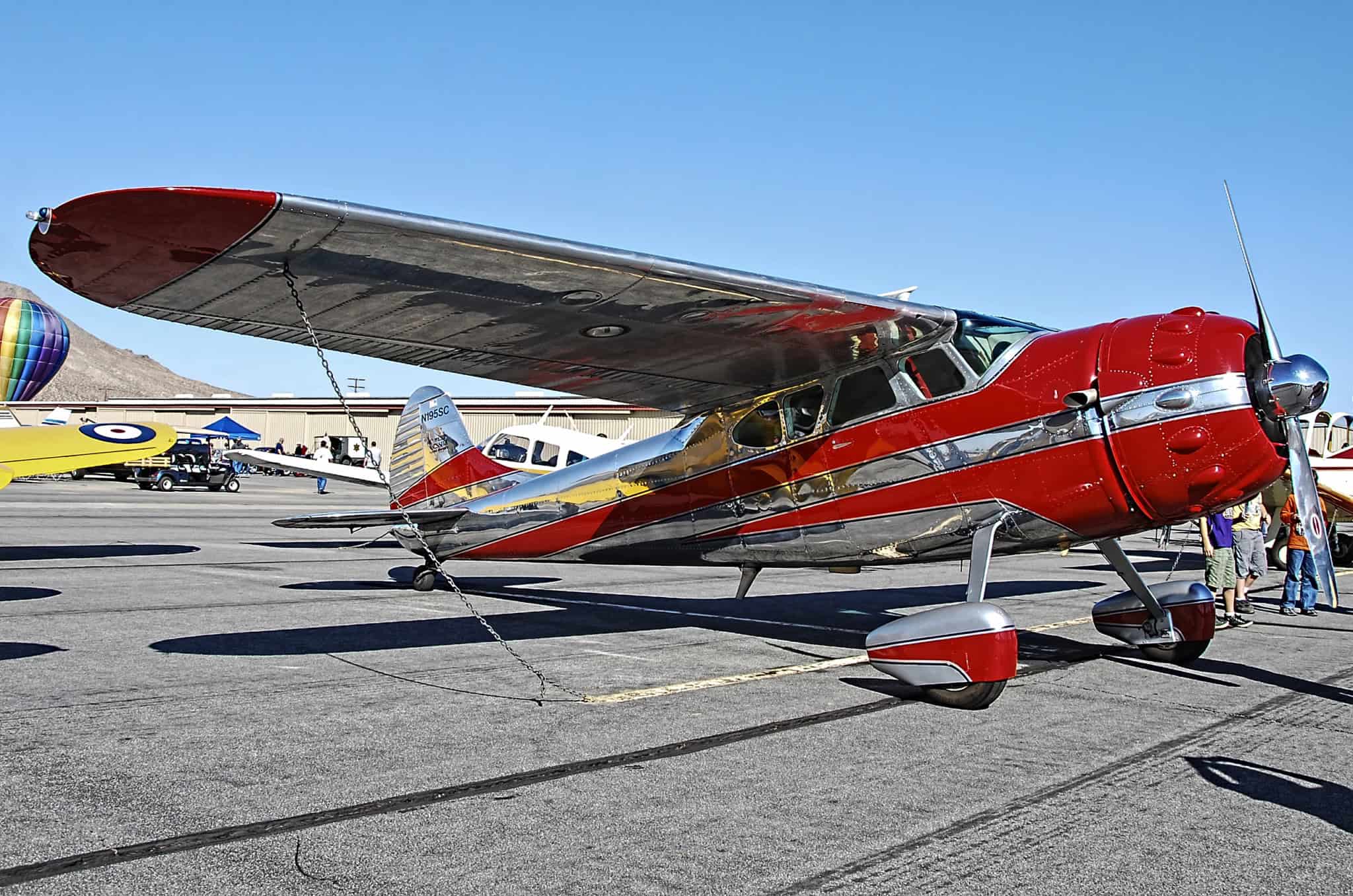

The Cessna 195 Business liner is a series of light single radial engine powered, tailwheel general aviation aircraft produced from 1947 to 1954 by Cessna. The 195 was also in service with the United States Air Force, United States Army, and Army National Guard as a light transport and utility aircraft with the designations LC-126/U-20.

Manufacturer:
Cessna
Country:
United States
Manufactured:
1945 to: 1954
ICAO:
C195
Price:
US$0.012 million (1947)
Avionics:
IFR avionics
Engine:
1x Jacobs R-755 radial engine
other: Other
Power:
300 horsepower
Max Cruise Speed:
155 knots
287 Km/h
Approach Speed (Vref):
54 knots
Travel range:
700 Nautical Miles
1,296 Kilometers
Fuel Economy:
Service Ceiling:
18,300 feet
Rate of Climb:
1200 feet / minute
6.10metre / second
Take Off Distance:
457 metre - 1,499.33 feet
Landing Distance:
452 metre - 1,482.92 feet
Max Take Off Weight:
1,519 Kg
3,349 lbs
Max Landing Weight:
Max Payload:
598 Kg
1,318 lbs
Fuel Tank Capacity:
76 gallon
288 litre
Baggage Volume:
0.5 m3 / 18 ft3
Seats - Economy / General:
5 seats
Seats - Business Class:
Seats - First Class:
Cabin Height:
1.2 metre - 3.94 feet
Cabin Width:
1.16 metre - 3.81 feet
Cabin Length:
2.2 metre - 7.22 feet
Exterior Length:
8.33 metre - 27.33 feet
Tail height:
Fuselage Diameter:
1.3 metre - 4.27 feet
Wing Span / Rotor Diameter:
11.02 metre - 36.15 feet
Wing Tips:
No Winglets

The Cessna 195, together with the Cessna 190, was the only postwar radial-engine aircraft built by Cessna. In 1945, the first prototype conducted its maiden flight after the Second World War. In 1947, it entered into production. It was named the Businessliner because the 195 was marketed primarily as a business aircraft due to its high value and high operating cost.

On June 12, 1954, the Cessna 195 received its first type certificate. It was the first Cessna aircraft to be entirely built of aluminum and was designed with a cantilever wing. It was based on the pre-war Cessna 165 aircraft. It has a wingspan of 11.02 meters. The aircraft’s fuselage is larger compared with other Cessna aircraft because the 42-inches diameter radial engine had to be located in the nose.

The aircraft was also configured with two rows of seats, two seats in the front row, and up to three passenger seats at the back. The external length of the aircraft is 8.33 meters, the height is 2.18 meters, and the fuselage diameter is 1.3 meters. It has flat sprung-steel landing gear legs and has a wheelbase of 6.3 meters. Some aircraft were fitted with a retractable step that stretches upon the opening of the cabin door.

The aircraft is powered by a Jacobs R-755 radial engine with a maximum thrust rate of 300 horsepower. The seven-cylinder air-cooled engine is known for its oil consumption. The 195 has a 5-gallon oil tank, with a 2-gallon minimum for flight.

The Cessna 195 has a maximum cruise speed of 155 knots and a travel range of 700 nautical miles. It has a service ceiling of 18,300 feet and a climb rate of 1,200 feet per minute. The takeoff distance is 457 meters while the landing distance is 452 meters. It has a maximum takeoff weight of 1519 kg and a maximum payload of 598 kg.
