Overview
The Bell 230 is an improved derivative of the twin-engine light helicopter Bell 222. It is a utility transport version introduced in 1991 powered by two Allison 250 turboshaft engines.
Live Fleet Activity (B230)
📡
Fetching live data…
Specifications
Units
- Engine
- 2 × Allison 250-C30G2
- Engine type
- Turboshaft
- Power
- 2 × 700 shp · 522 kW
- Avionics
- —
- Wing tips
- No winglets
- Seats
- 10
- Crew
- —
- Cabin width
- 4 ft 7 in · 1.40 m
- Cabin height
- 4 ft 3 in · 1.30 m
- Cabin length
- 6 ft 11 in · 2.10 m
- Exterior length
- 50 ft 2 in · 15.30 m
- Tail height
- 11 ft 10 in · 3.60 m
- Fuselage diameter
- 5 ft 1 in · 1.55 m
- Wing span
- 42 ft 0 in · 12.80 m
- Baggage volume
- 35 ft³ · 1.0 m³
- Gross weight
- —
- Empty weight
- —
- Max takeoff weight
- 8,400 lb · 3,800 kg
- Max landing weight
- —
- Max payload
- 2,200 lb · 1,000 kg
- Fuel capacity
- 250 gal · 900 L · 700 kg (Jet A)
- Max cruise speed
- 140 kt · 161 mph · 259 km/h
- Maximum speed
- —
- Cruise speed
- —
- Approach speed
- —
- Range
- 378 nm · 430 mi · 700 km
- Fuel burn
- —
- Ceiling
- 15,500 ft · 4,700 m
- Rate of climb
- 1,600 ft/min · 8 m/s
- Takeoff distance
- —
- Landing distance
- —
Gallery
(/)
tap to zoom
(/)
Live fleet activity details
📡
Operational Context
The Bell 230 is a development of the Bell 222 with newer twin Allison 250 engines and other minor modifications. On August 12, 1991, the prototype 230 took to the skies for the first time. In March 1992, the helicopter received its certification from Transport Canada. November in the same year, delivery of the first production helicopter commenced. In 1995, the production of the Bell 230 ended with a total of thirty-eight helicopters built.
The Bell 230 design incorporates two main rotor blades made of stainless steel fiberglass and elastomeric bearings on the rotor hub that acts as a hinge to flapping, lagging, and pitching motion of the rotor blade.

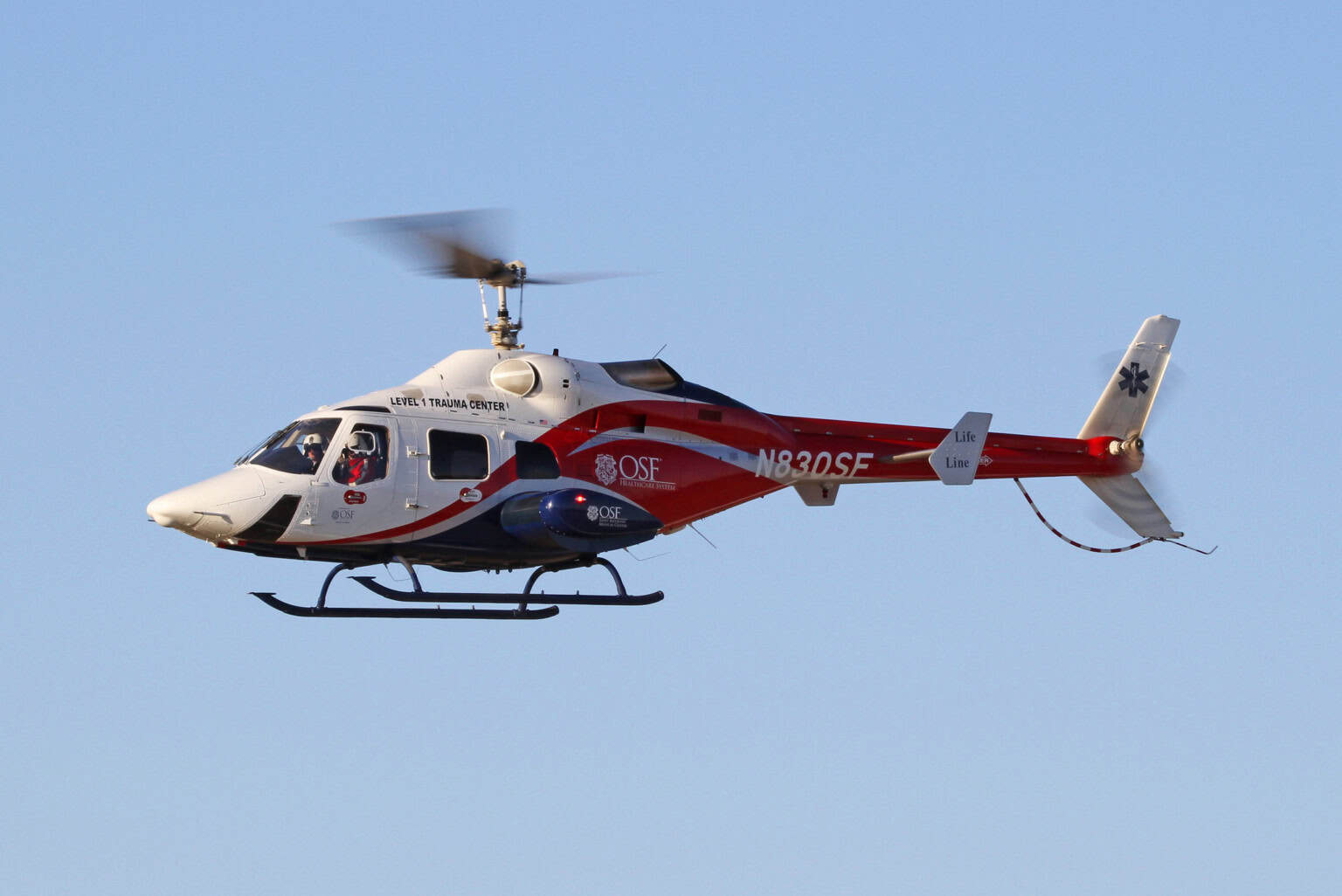

The helicopter can accommodate up to a maximum of ten persons in flight. Seating layout is available in a standard configuration for seven passengers and a single pilot, or executive configuration of up to six passengers with one to two pilots. The Bell 230 is normally flown with a single pilot and can be designed as a corporate or executive version, emergency medical services helicopter, or as a utility transport helicopter.
The helicopter is powered by a twin Allison Model 250 engines. Now known as the Rolls-Royce M250, it is a turboshaft engine with 6-stage axial and 1-stage centrifugal compressors, single can combustor chamber, and 2-stage axial gas generator power turbine and 2-stage axial free-power output turbine. The engine exhaust stacks are positioned on the upper part of the cowling. Fuel is deposited in three tanks located in the fuselage and sponsons.
The Bell 230 has an exterior length of 15.3 meters, an exterior height of 3.6 meters, and a fuselage diameter of 1.55 meters. It had an extra skid or wheel landing gear. The cabin height is 1.3 meters, the cabin length is 2.1 meters, and the cabin width is 1.4 meters.
The 230 has a maximum speed of 140 knots and a travel range of 378 nautical miles. The service ceiling is 15,500 feet while the hover ceiling is 12,400 feet. It has a maximum takeoff weight of 3,810 kg and a maximum payload of 1,000 kg.
