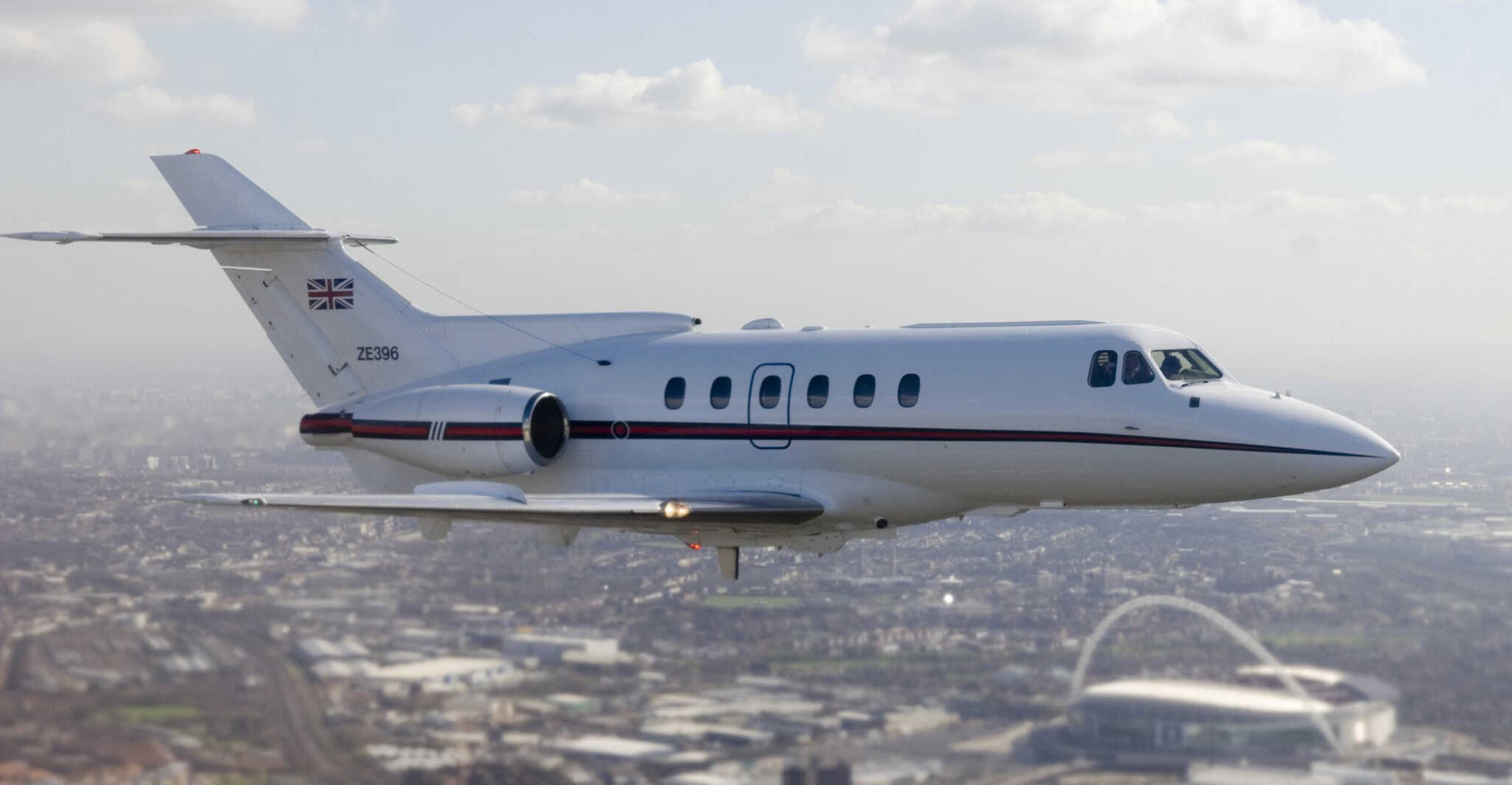

The British Aerospace 125 is a twin-engine medium-sized business jet initially designed by the British manufacturer de Havilland with the designation DH.125 Jet Dragon. The aircraft was redesignated as the Hawker Siddeley HS.125 during production until 1977. Afterward, the latest versions were offered as the Hawker 800. It also gained international popularity- it was sold to North American operators and also served with the Royal Air Force and the United States Air Force.

British Aero
United Kingdom
1930 to: 2013
US$12.9 million (1995)
Collins Pro Line 21 avionics suite
2x Rolls-Royce Viper 601-22
3,750 pound-force
Max Cruise Speed:
320 knots
593 Km/h
Approach Speed (Vref):
83 knots
Travel range:
1,560 Nautical Miles
2,889 Kilometers
Fuel Economy:
Service Ceiling:
41,000 feet
Rate of Climb:
4900 feet / minute
24.89metre / second
Take Off Distance:
1631 metre - 5,350.98 feet
Landing Distance:
1036 metre - 3,398.91 feet
Max Take Off Weight:
11,340 Kg
25,000 lbs
Max Landing Weight:
10,000 Kg
22,046 lbs
Max Payload:
1,700 Kg
3,748 lbs
Fuel Tank Capacity:
1,418 gallon
5,368 litre
Baggage Volume:
Seats - Economy / General:
14 seats
Seats - Business Class:
Seats - First Class:
Cabin Height:
1.75 metre - 5.74 feet
Cabin Width:
1.8 metre - 5.91 feet
Cabin Length:
6.5 metre - 21.33 feet
Exterior Length:
15.4 metre - 50.52 feet
Tail height:
5.26 metre - 17.26 feet
Fuselage Diameter:
1.85 metre - 6.07 feet
Wing Span / Rotor Diameter:
14.33 metre - 47.01 feet
Wing Tips:
No Winglets

The British Aerospace 125 has two crew members with eight passengers in a normal layout and fourteen passengers in a high-density configuration. The cabin height is 1.75 meters, the cabin length is 6.5 meters, and the cabin width is 1.8 meters. It has an external length of 15.39 meters, an external height of 2.9 meters, and a fuselage width of 1.85 meters. It is a low-winged monoplane with a wingspan of 14.33 meters and a wing area of 32.8 square meters. The tail height is 5.26 meters and the wheelbase is 6.4 meters.

The aircraft has an empty weight of 5,684 kg, a maximum zero-fuel weight of 7,050 kg, and a maximum payload of 1,700 kg. It has a maximum takeoff and landing weight of 11,340 kg and 10,000 kg, respectively. The fuel tank capacity is 1,418 US gal. The 125 is powered by two Rolls-Royce Viper 601-22 turbojet engines. It has a seven-stage axial compressor, annular combustors with twenty-four burners, a single-stage turbine, and a scavenge oil system. Each engine produces a 3,750 lbf of thrust.

The British Aerospace 125 has a maximum speed of 320 knots. The maximum cruise speed at 28,000 feet is 454 knots and the economic cruise speed at 39,000 feet is 403 knots. It has a stall speed of 83 knots with flaps down, a never exceed speed of 475 knots, and a maximum rough airspeed of 230 knots.

It has a range of 1,650 nautical miles with 454 kg of payload and 45 minutes reserve plus allowances for takeoff and landing and 1,560 nautical miles with maximum fuel and maximum payload. It can fly up to 41,000 feet and can climb at a rate of 4,900 feet per minute. The takeoff run and takeoff balanced field length are 1,341 meters and 1,631 meters, respectively, while the landing run is 1,036 meters, and distance from 15 meters is 649 meters at typical landing weight.
